Permanent Magnet Brushless Motors - BL180
BL180/45 |
|
|
|
|
|
6 kW Compact Traction motor |
|
| Input voltage | Nominal speed | Nominal torque | Nominal mechanical power | Efficiency | Nominal phase current | Peak torque | |
96 VDC 3000 RPM 20 Nm 6200 W 85 % 110 Arms 35 Nm (S2 < 2 min) |

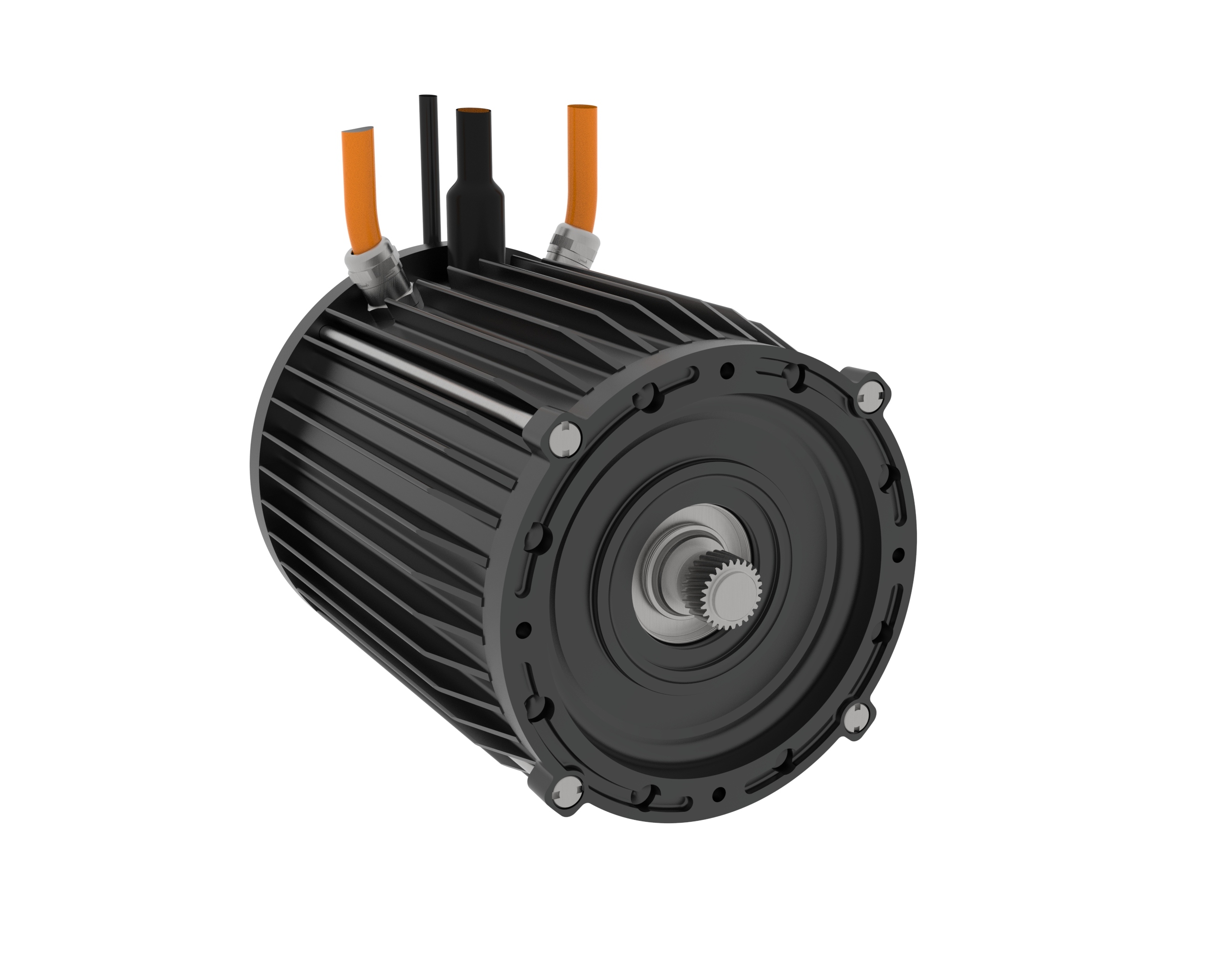

BL180/90 |
|
|
|
|
|
12 kW Compact Traction motor |
|
| Input voltage | Nominal speed | Nominal torque | Nominal mechanical power | Efficiency | Nominal phase current | Peak torque | |
96 VDC 3000 RPM 40 Nm 12000 W 85 % 215 Arms 64 Nm (S2 < 2 min) |
| S1 – continuous duty | S2 – short time | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor Group | Product ID | Ordering No | Nominal DC voltage [V] | Gear Box ratio | Nominal phase current [A] | Nominal torque [Nm] | Nominal speed [RPM] | Nominal mechanical power [W] | Peak phase current [A] | Peak torque [Nm] @ RPM | Peak mechanical power [W] | Brake Voltage [V] | Encoder voltage [V] | Encoder type | No load current | No load speed | Stall phase current | Stall phase torque | Weight [kg] | IP protection class | |
| BL180/45 | 96 | n/a | 110 | 20 | 3000 | 6000 | 175 | 35 @ 3000 (2 min) | 10000 | n/a | 5 | sin/cos | upcoming | upcoming | upcoming | upcoming | 27,0 | IP54 | |||
| BL180/90 | 96 | n/a | 215 | 40 | 3000 | 12000 | 350 | 64 @ 3000 (2min) | 20000 | n/a | 5 | sin/cos | upcoming | upcoming | upcoming | upcoming | 22,0 | IP54 | |||
