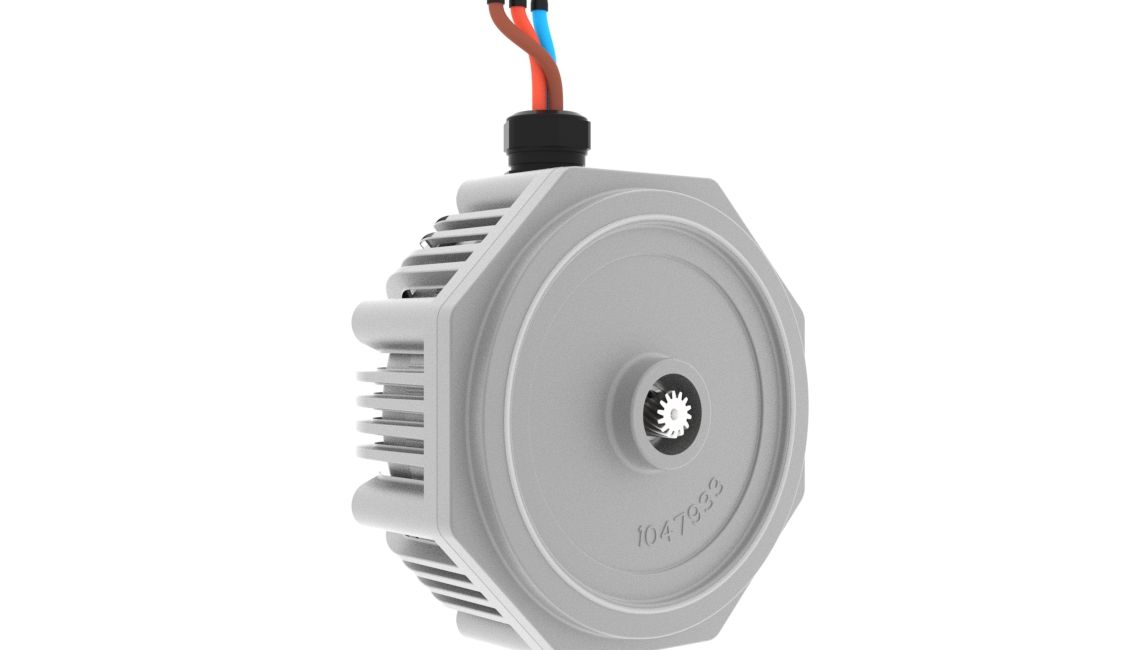

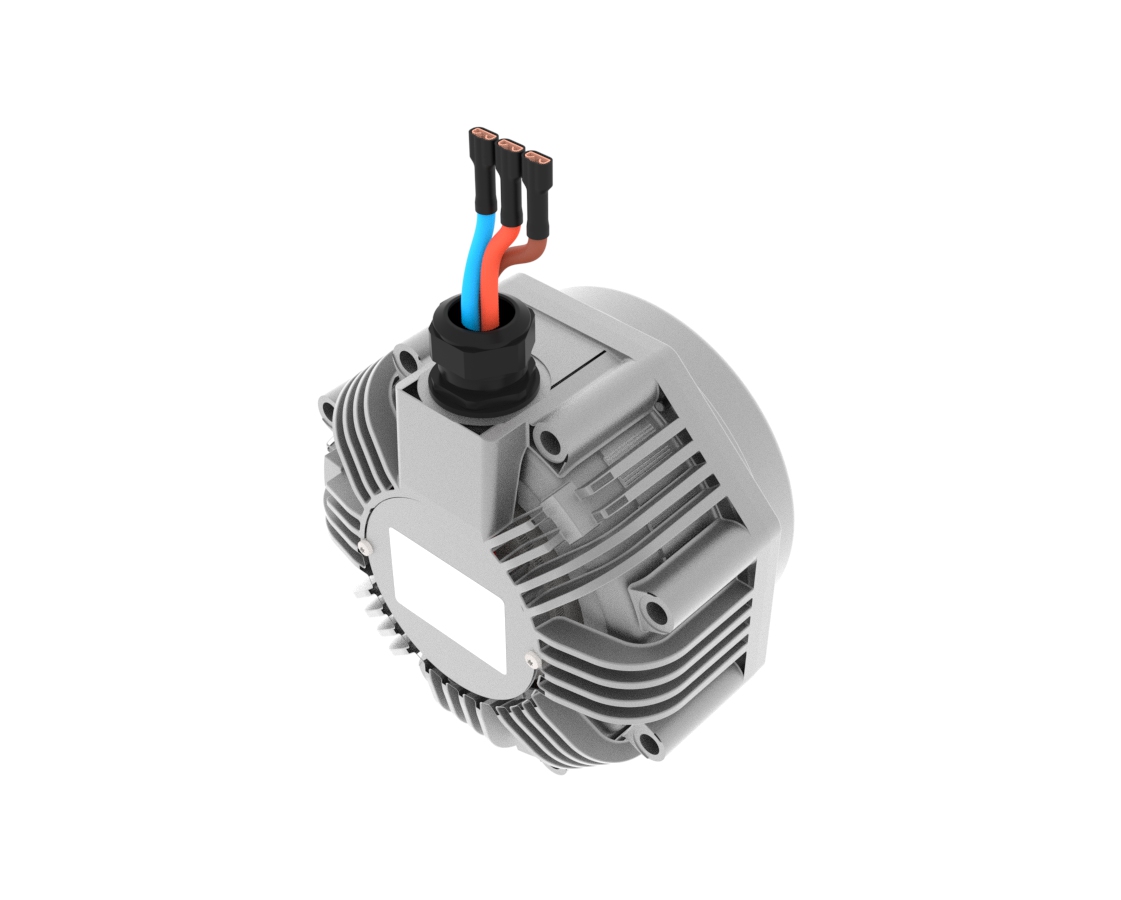

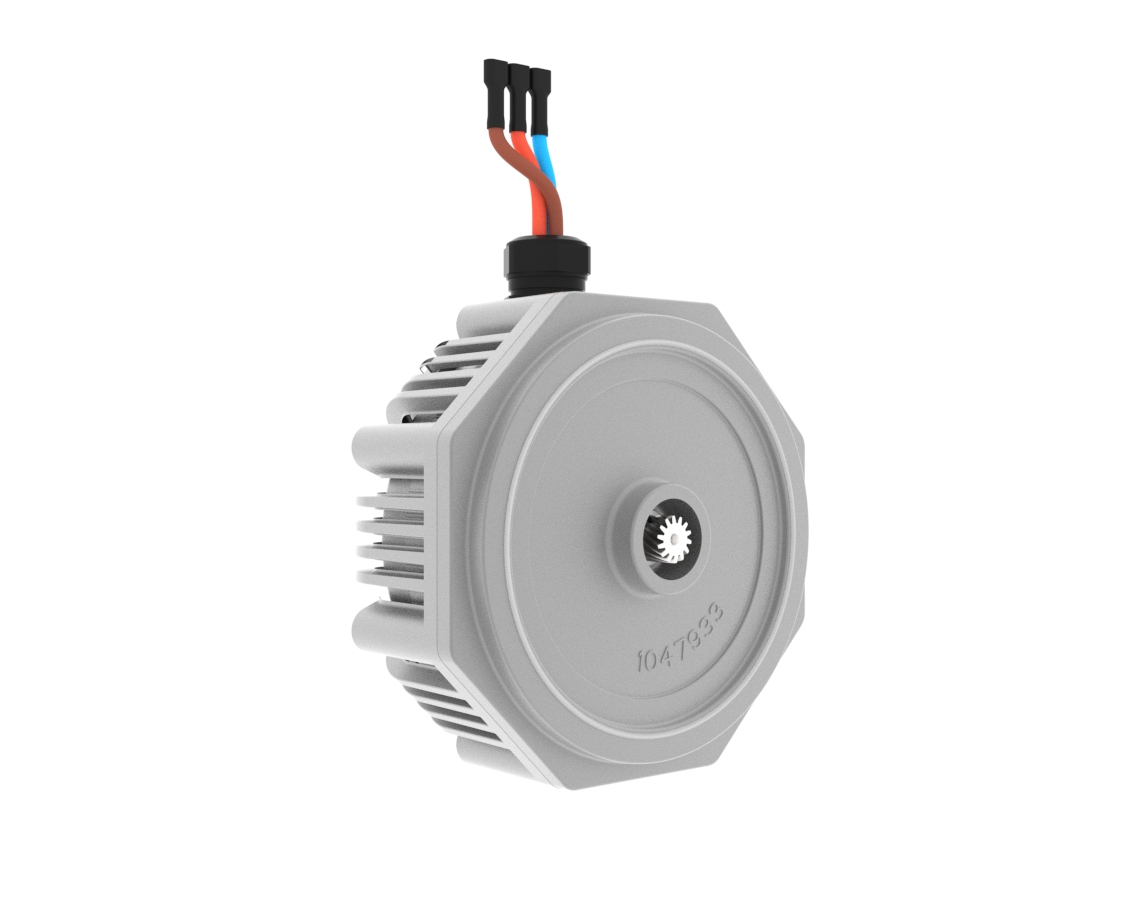

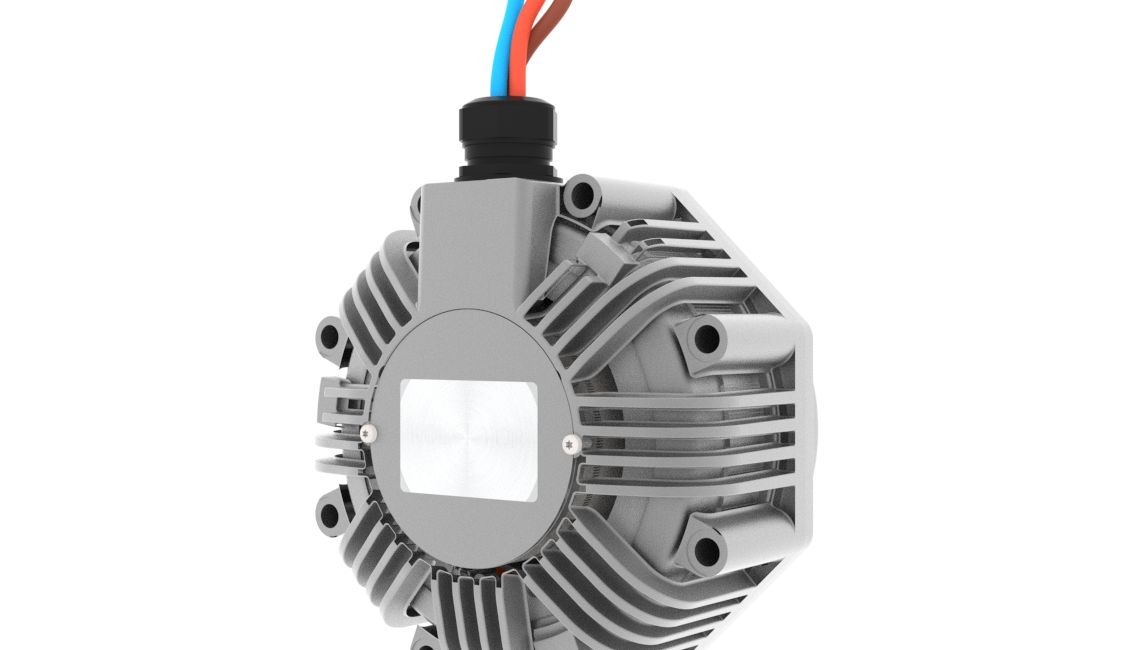

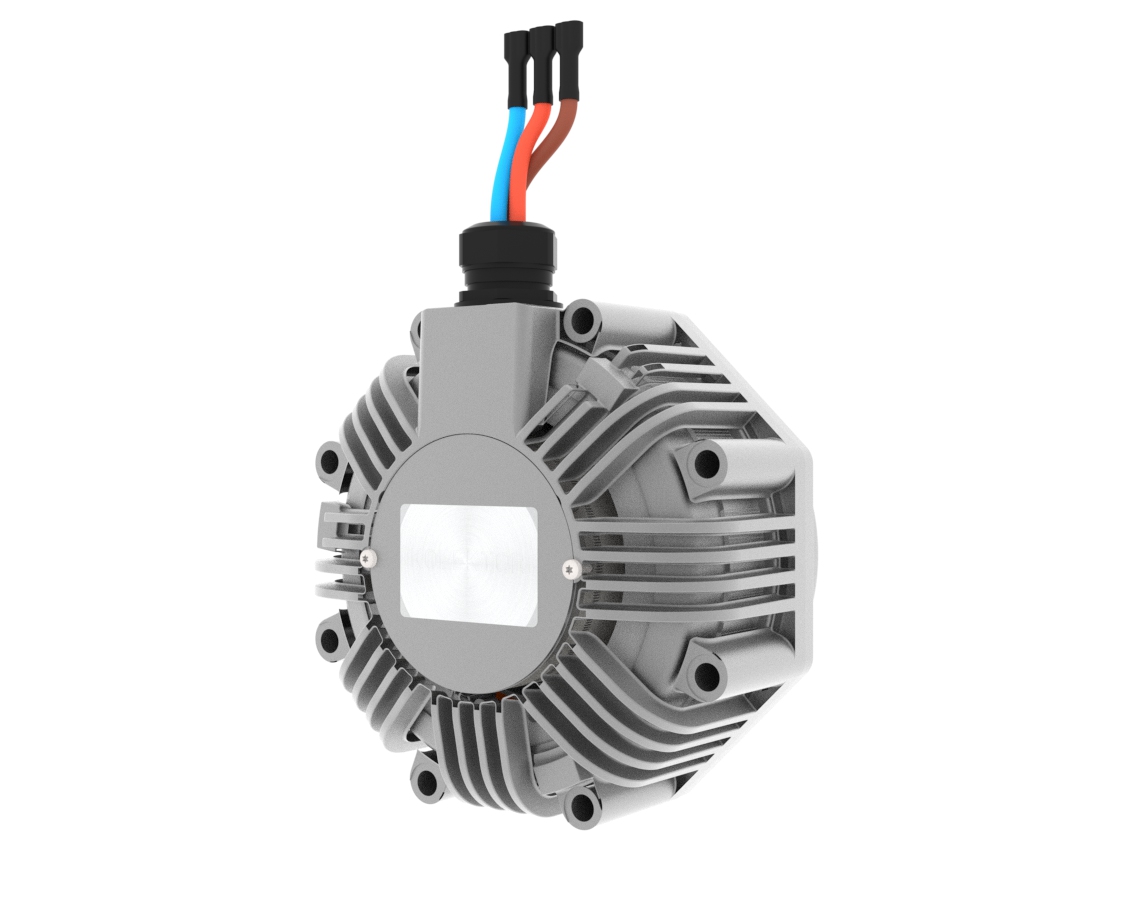

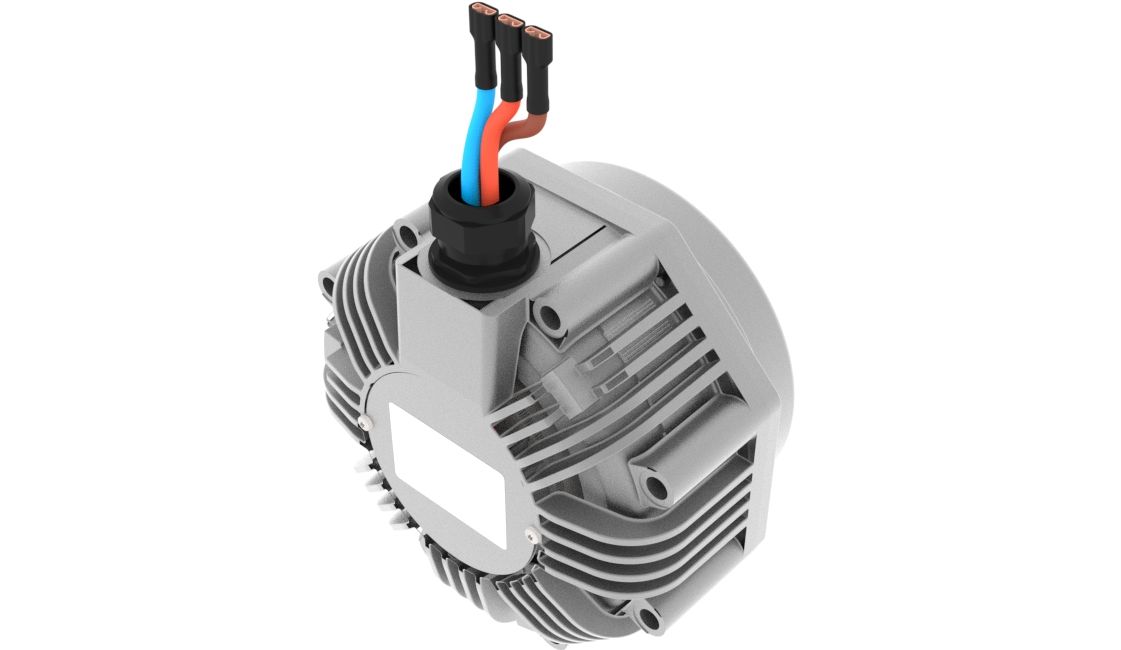

PMBL Motor | BL145/25 (4,5/900)

Nominal DC voltage [V]
Nominal suppy DC current [A]
No load DC current [A]
Nominal phase current [Arms]
Peak phase current [Arms]

Resistance phase-to-phase [mOhm]
Inductance phase-to-phase [mH]

48
10
n/a
20
45

...
...

Nominal torque [Nm]
Peak torque [Nm] (S2=min)
Stall torque [Nm]
Torque constant [Nm/Arms]
Current contant [A_rms/N]

4,5
11 @ 900 RPM (5 min)
n/a
0,2
4,4

No load speed [RPM]
Nominal speed [RPM]
Nominal mechanical power [W]
Nominal efficiency [%]
Peak mechanical power [W]
peak torque efficiency [%]

n/a
900
420
85%
1000
n/a

Communication Communication protocol

n/a

Other notes
