Electric Fuel Pump 4/20

Electric Fuel pump 4/20

Efficient BLDC drive with integrated control

an winding technology with high power density
integrated BLDC motor with LIN commnucication

 Gas & media tight electronics

innovative sealing technology
of electrical components

Integrated ge-rotor pump

Pressure up to 20 bar
Flow up to 4 l/min

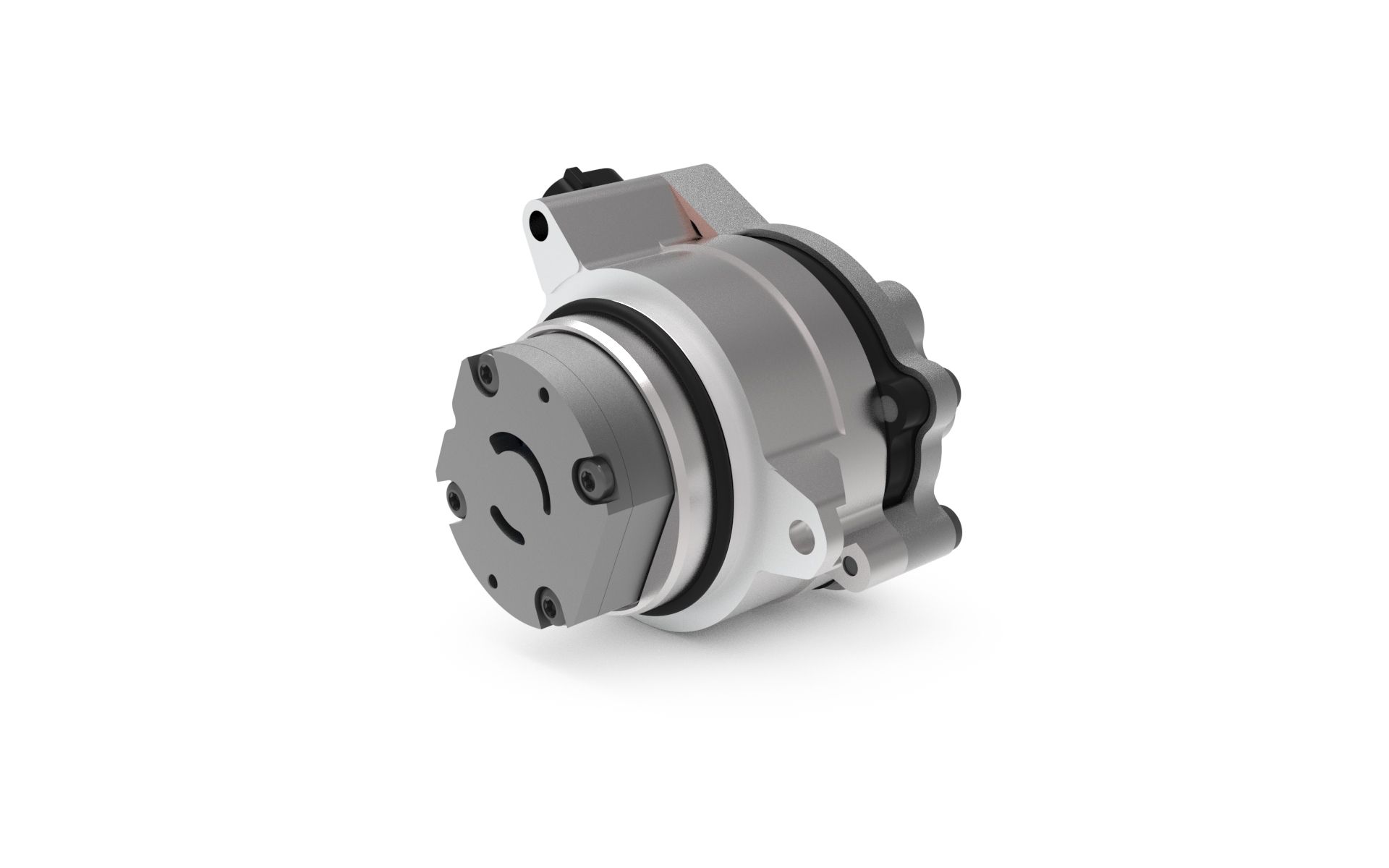

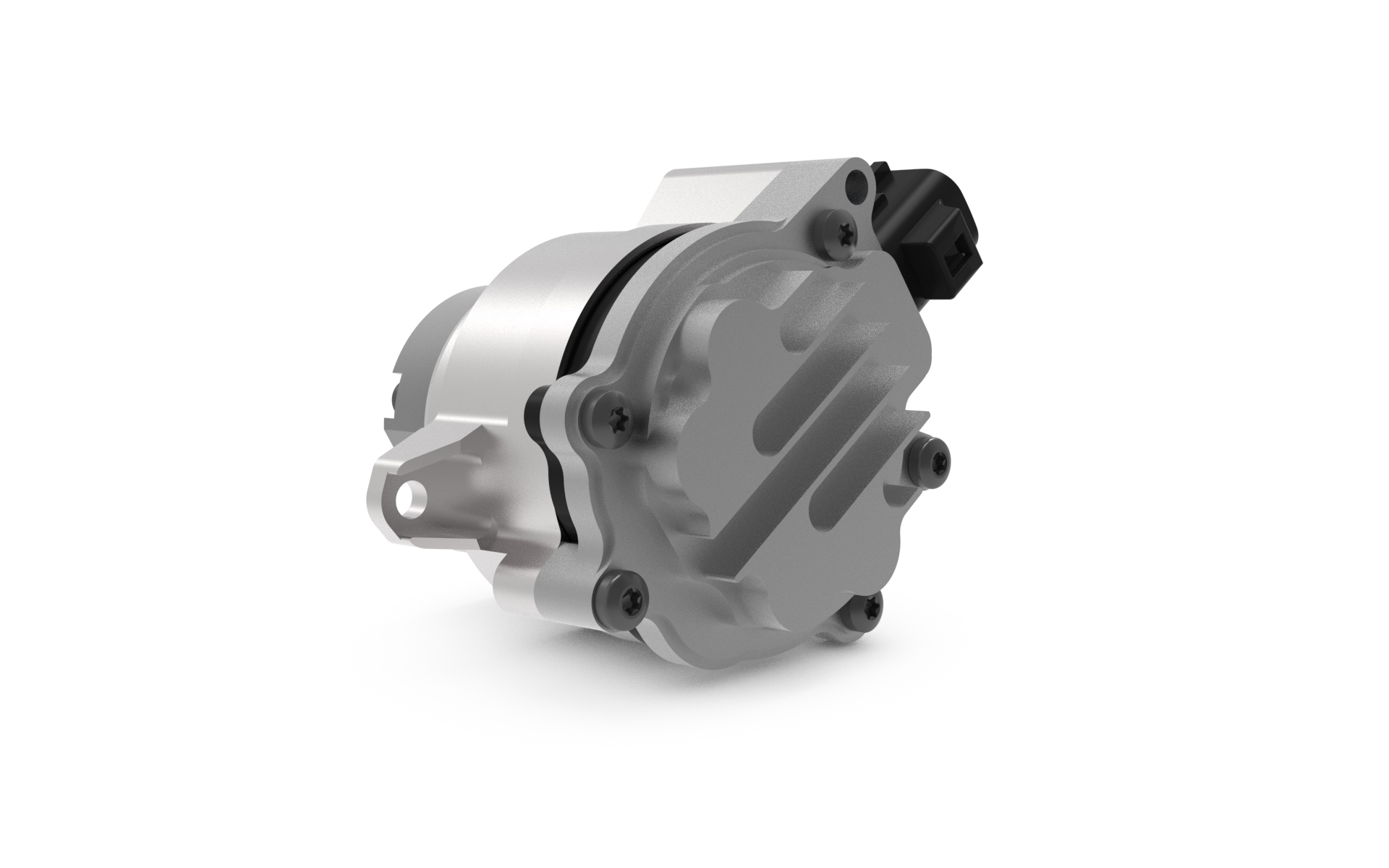

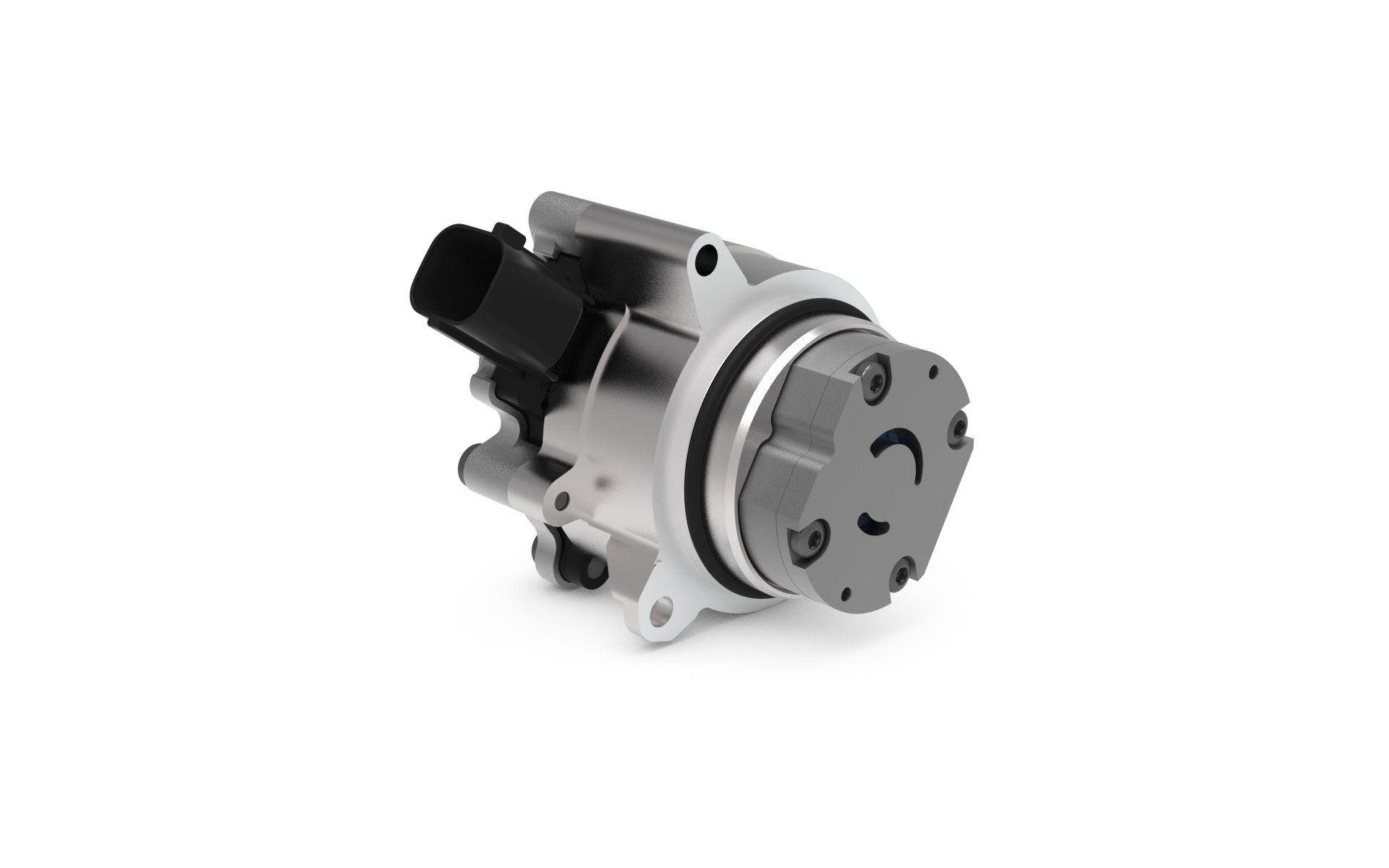

Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - render
Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - render
Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - render

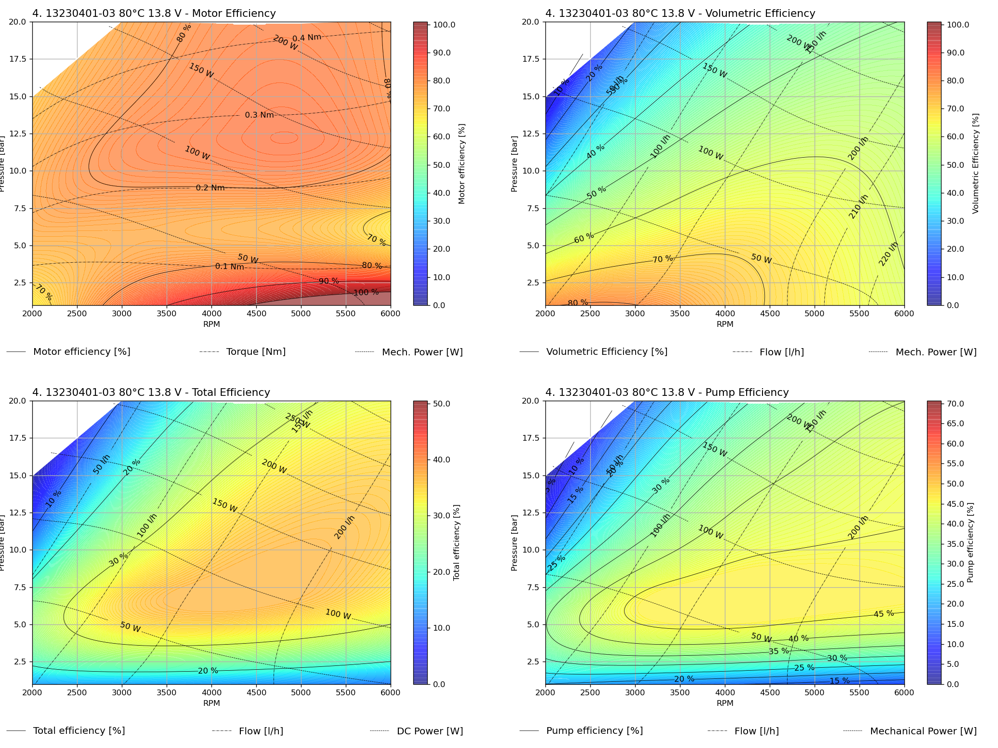

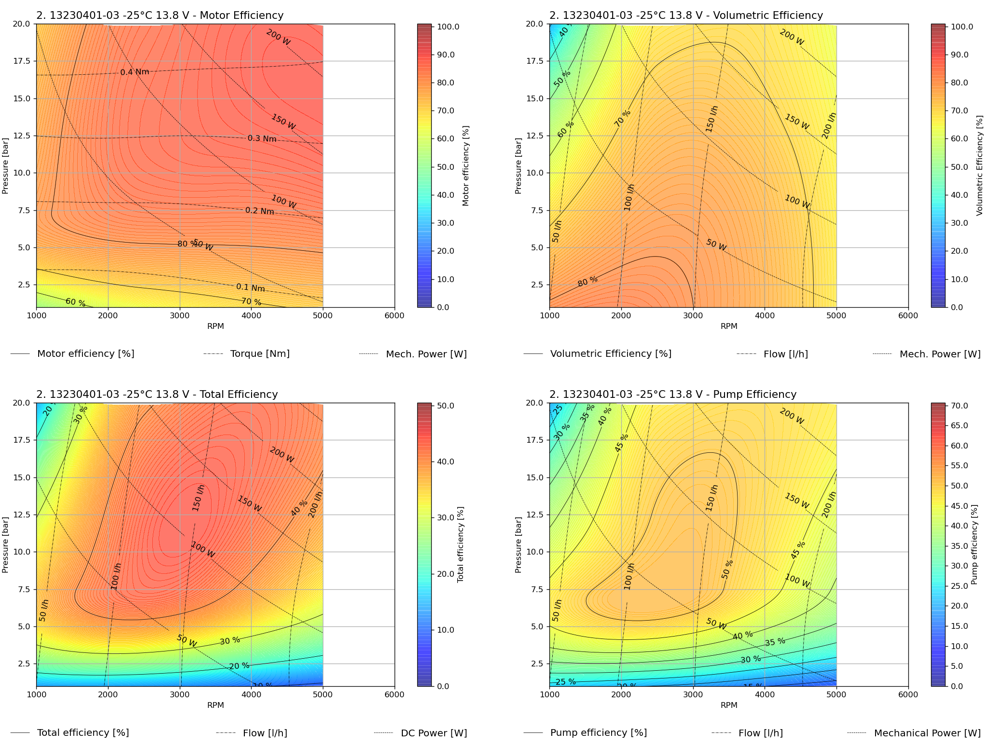

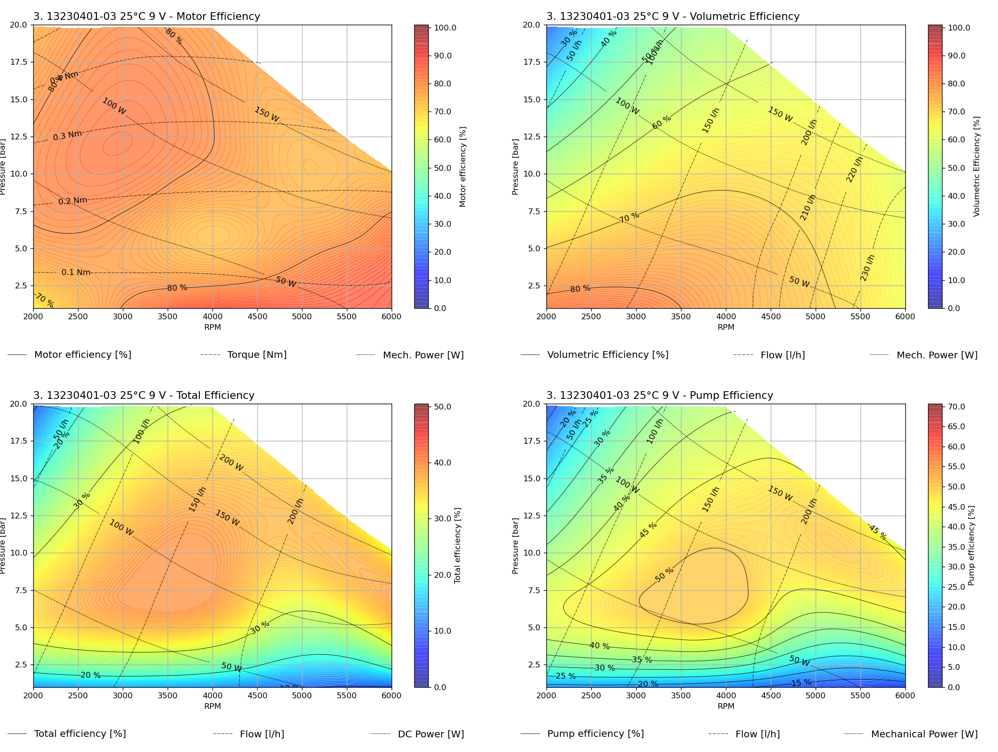

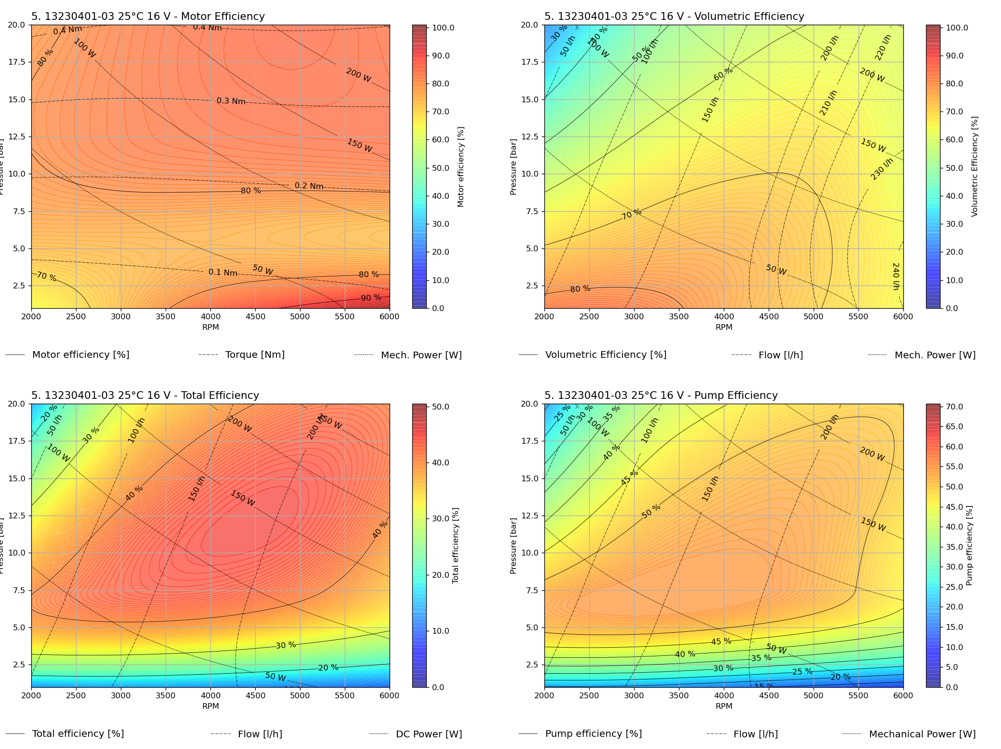

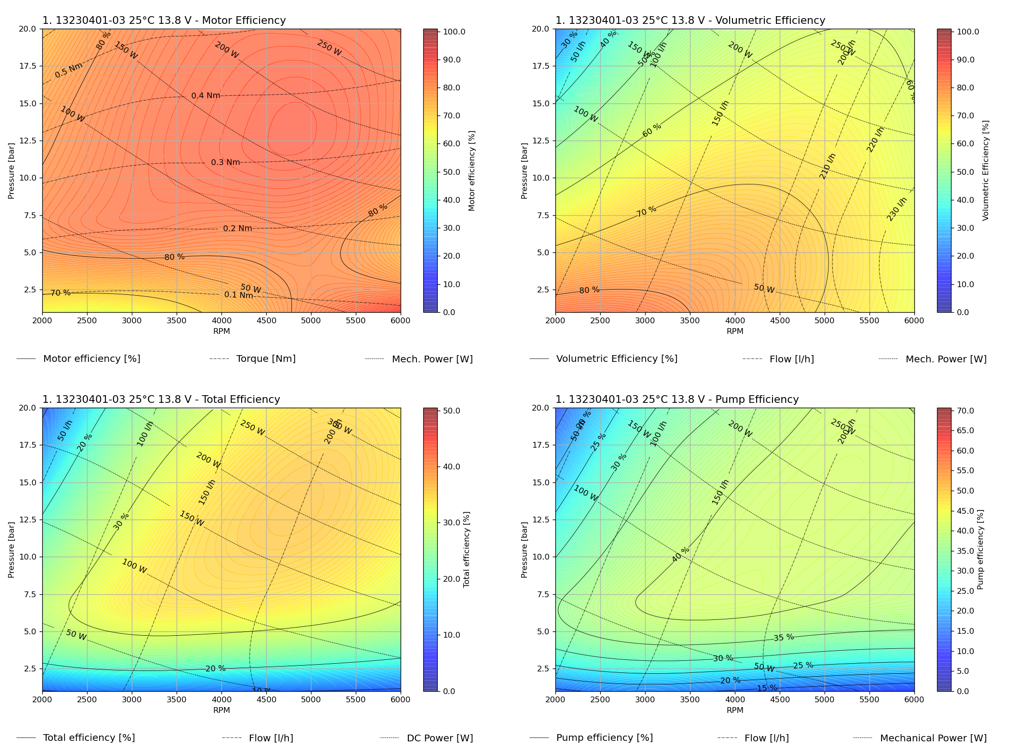

Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - performance
Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - performance
Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - performance
Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - performance
Kolektor Mobility | Motors & Drives | (E-pump 13-2304-01 EFP) - performance

TECHNICAL DATA



Ge-rotor pump unit



Nominal DC voltage [V]
Nominal suppy DC current [A]


Speed range [RPM]

12
up to 18


up to 6000

Max pressure [bar]
Max flow [l/min]


Nominal operating point @ 25°C (cont)
Pressure [bar]
Flow [l/min]
Volumetric efficiency [%]
Total efficiency [%]

up to 20
up to 4



8
3
75
30


Motor working temperature range [°C]
Fuel temperature range [°C]

 up to 130
up to 80

 Weight [kg]
Protection clas [IP]


 1,3
...




Communication Communication protocol

CAN

 Electrical connection type

on board connector



Other notes





Product ID | 13-2304-02
SAP-r3 ID |



 DRAWING

DOWNLOADS

Drawing
3D Model
