Electric Oil Pump 15/4

Electric Oil pump 15/4

Efficient BLDC drive with integrated control

an winding technology with high power density
integrated BLDC motor with LIN commnucication

 Gas & media tight electronics

innovative sealing technology of electrical components

Integrated ge-rotor pump

Pressure up to 4 bar
Flow up to 15 l/min

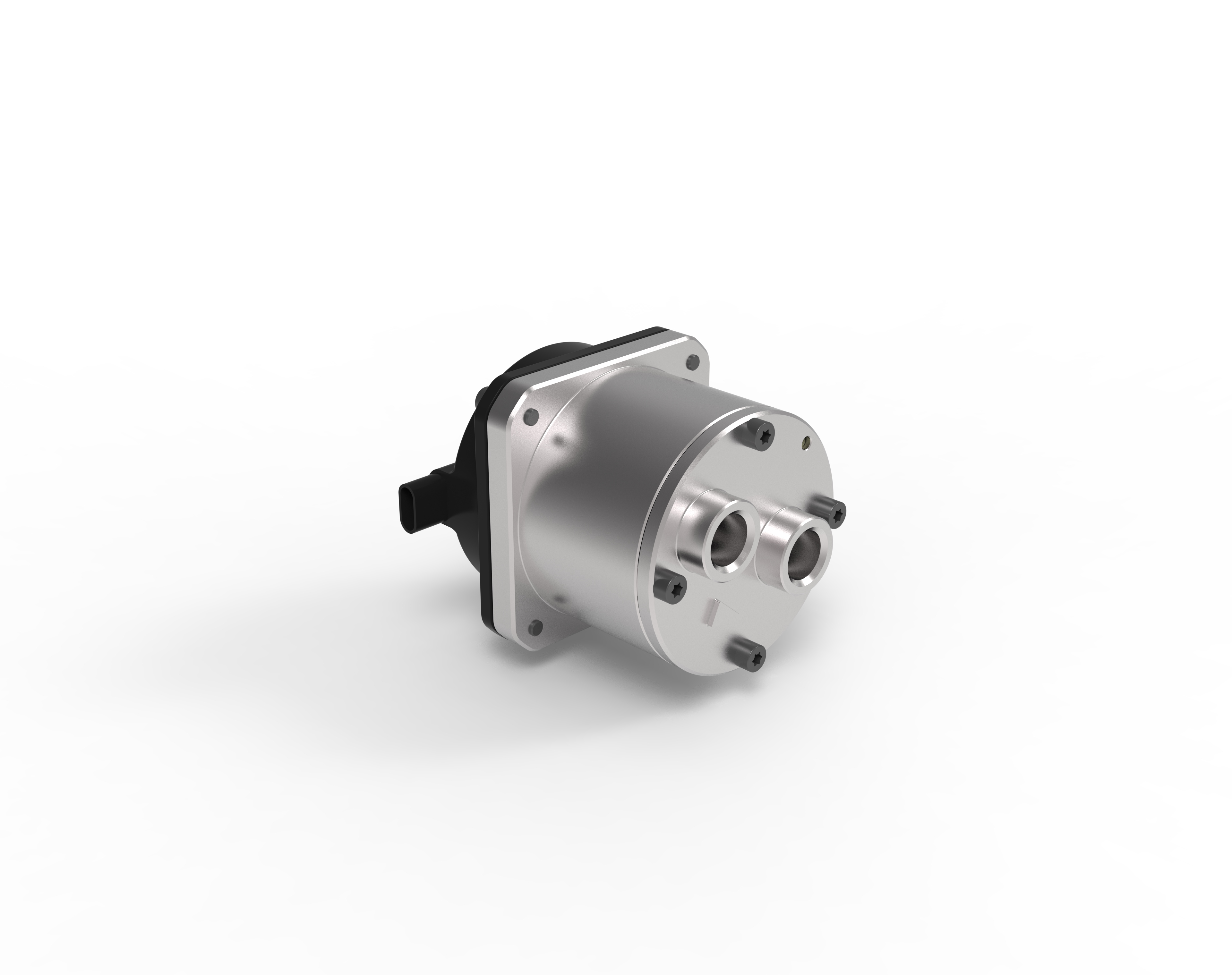

Kolektor Mobility | Motors & Drives | (E-pump 13-0401-01 EOP 15/4) - render

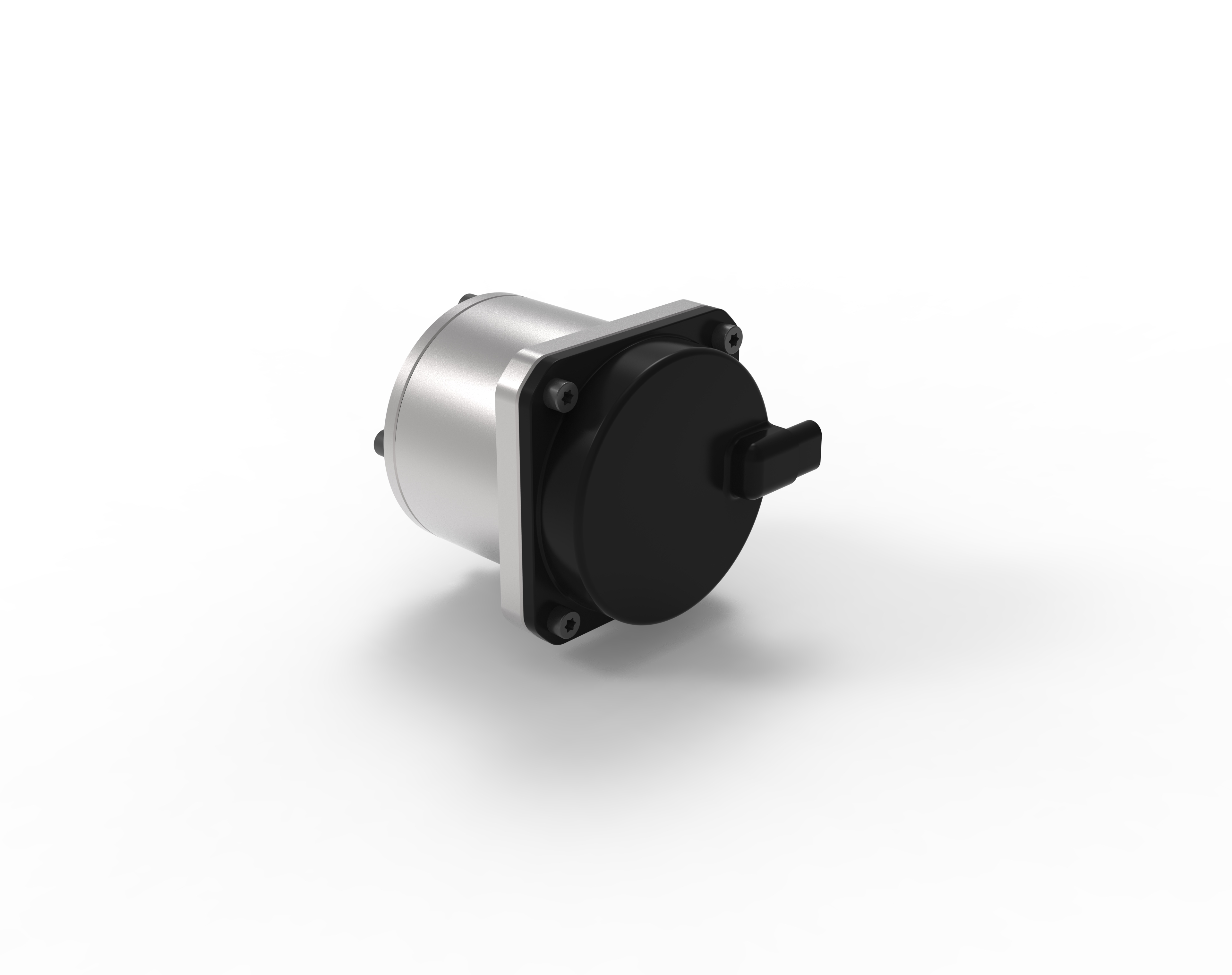

Kolektor Mobility | Motors & Drives | (E-pump 13-0401-01 EOP 15/4) - render

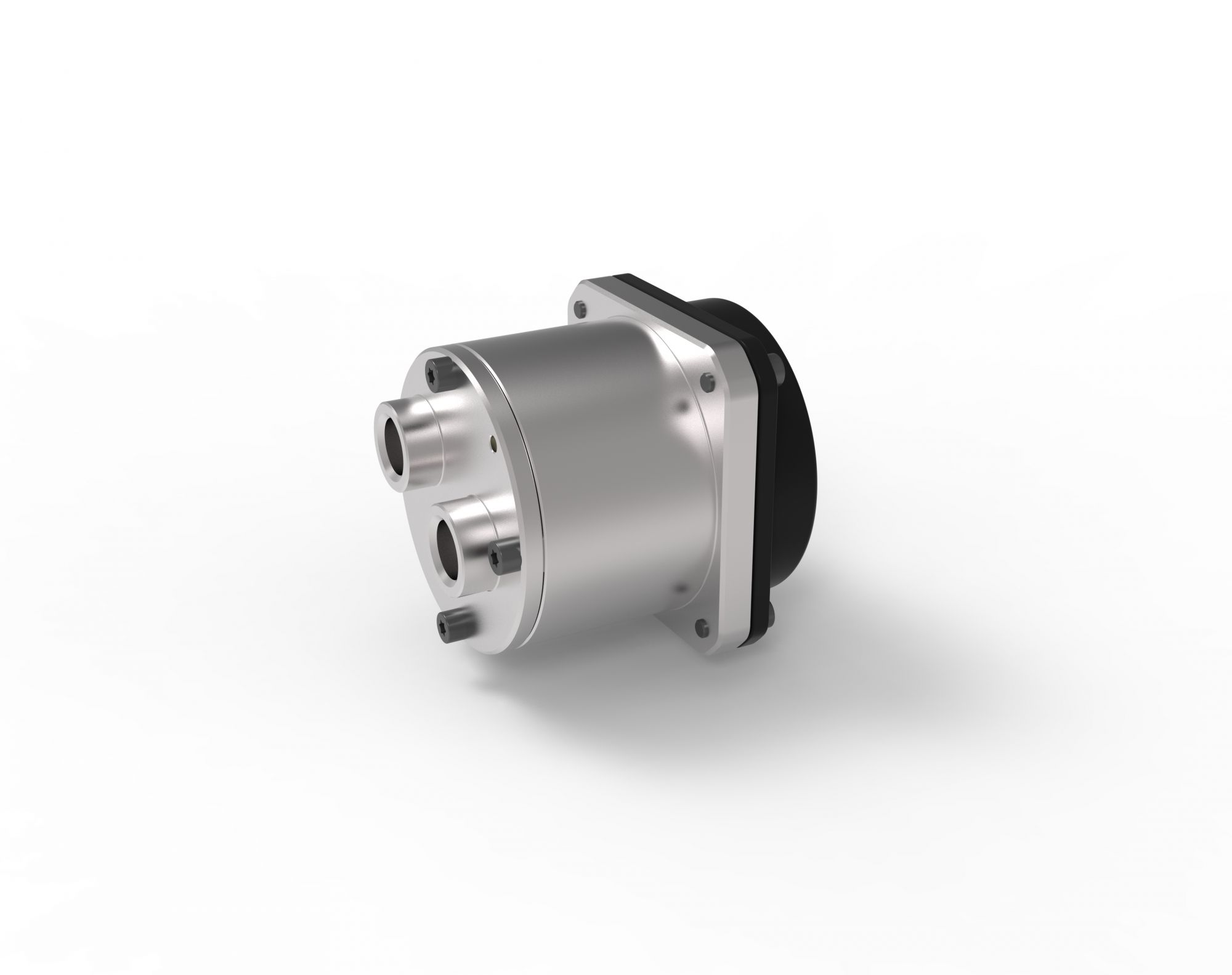

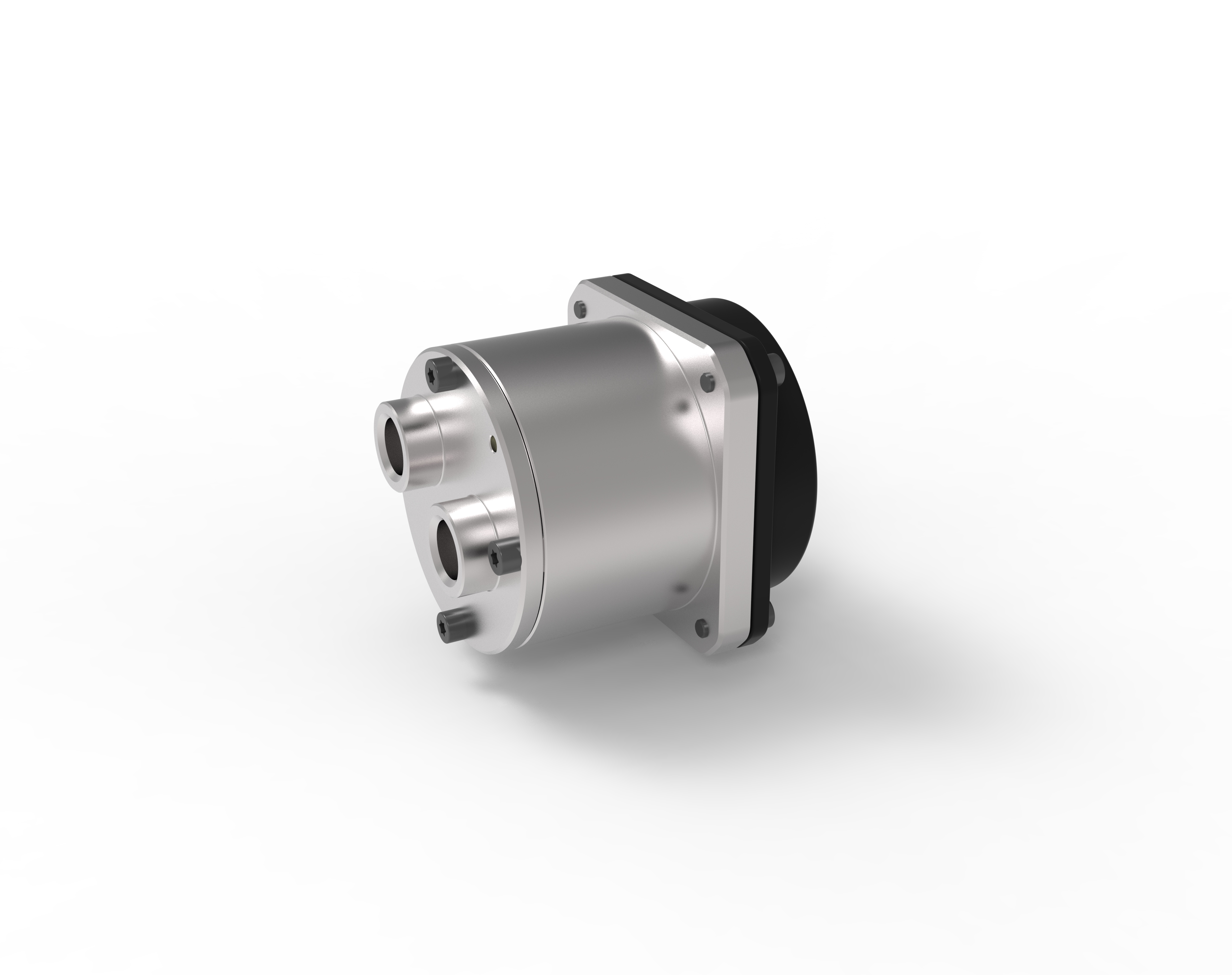

Kolektor Mobility | Motors & Drives | (E-pump 13-0401-01 EOP 15/4) - render

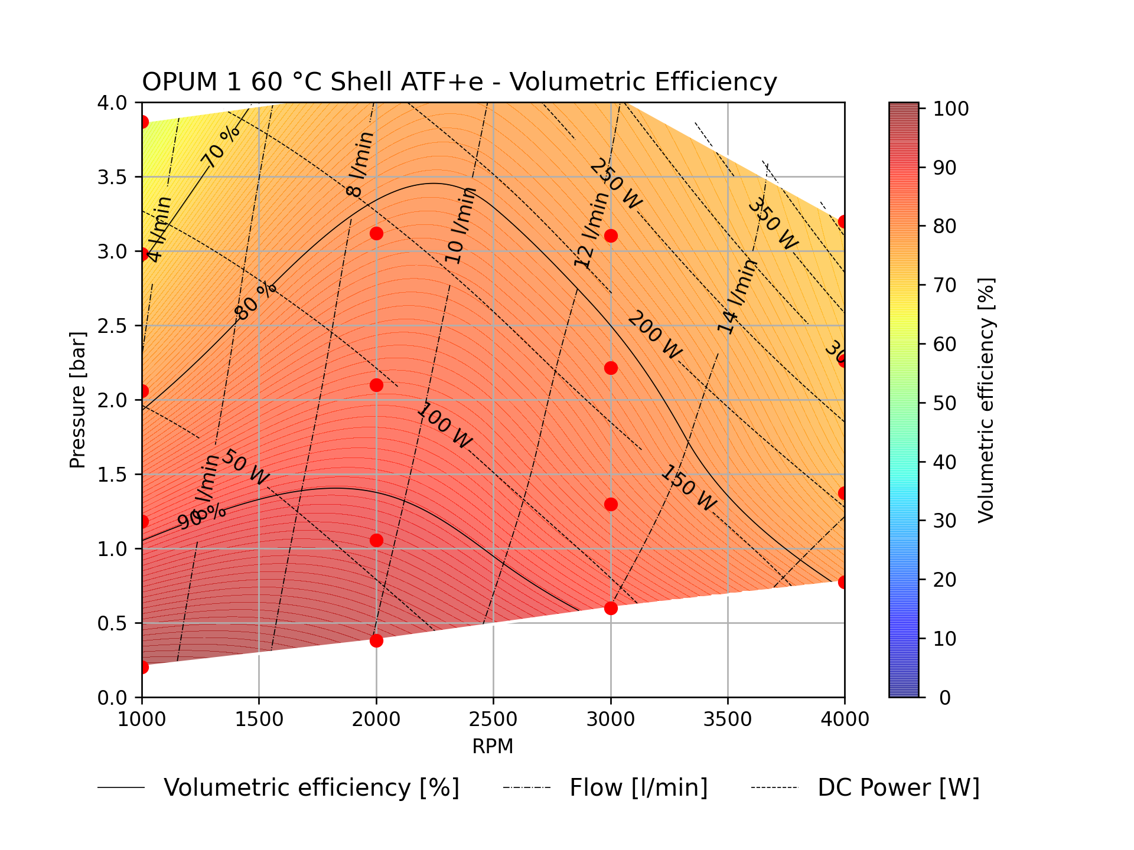

Kolektor Mobility | Motors & Drives | (E-pump 13-0401-01 EOP 15/4) - performace charts

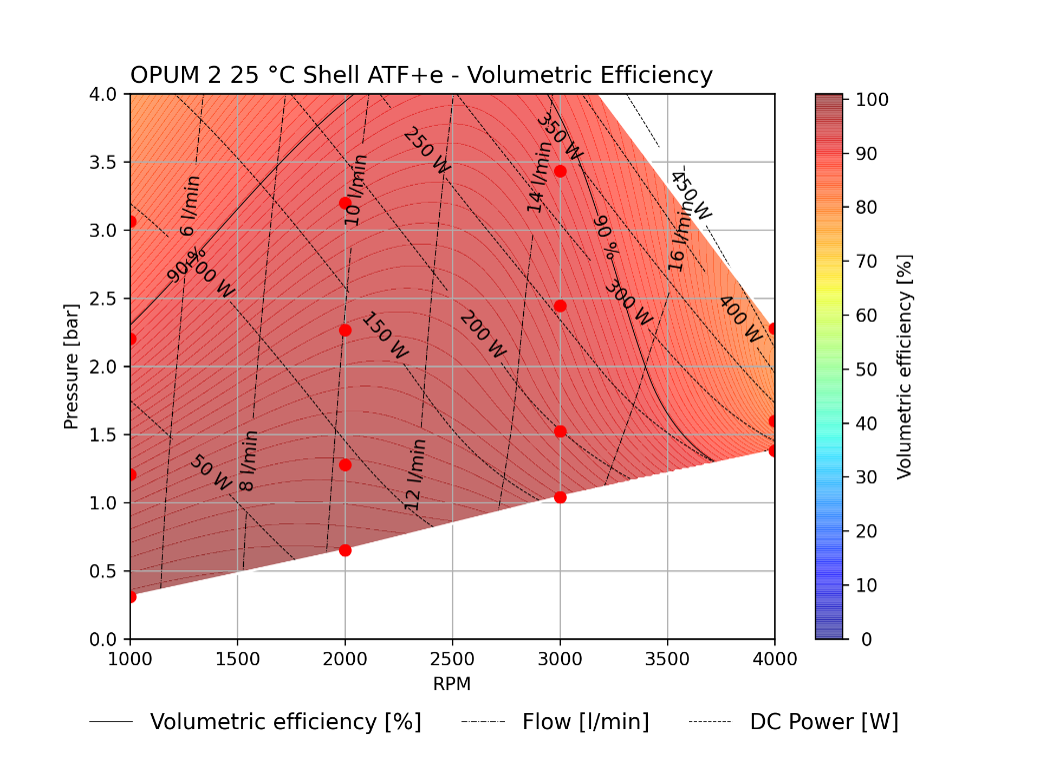

Kolektor Mobility | Motors & Drives | (E-pump 13-0401-01 EOP 15/4) - performace charts

TECHNICAL DATA



Ge-rotor pump unit



Nominal DC voltage [V]
Nominal suppy DC current [A]
Peak supply DC current [A]

Speed range [RPM]

12
up to 20
up to 30

up to 4000

Max pressure [bar]
Max flow [l/min]


Nominal operating point @ 60°C (cont)
Pressure [bar]
Flow [l/min]
Volumetric efficiency [%]

up to 4
up to 15



2,5
13
90


Motor working temperature range [°C]
Motor winding max temperature [°C]
Motor ambient temperature range [°C]

 ...
...
...

 Weight [kg]
Protection clas [IP]


 0,12
...




Communication Communication protocol

LIN

 Electrical connection type

on board connector



Other notes





Product ID | 13-0401-01
SAP-r3 ID |
