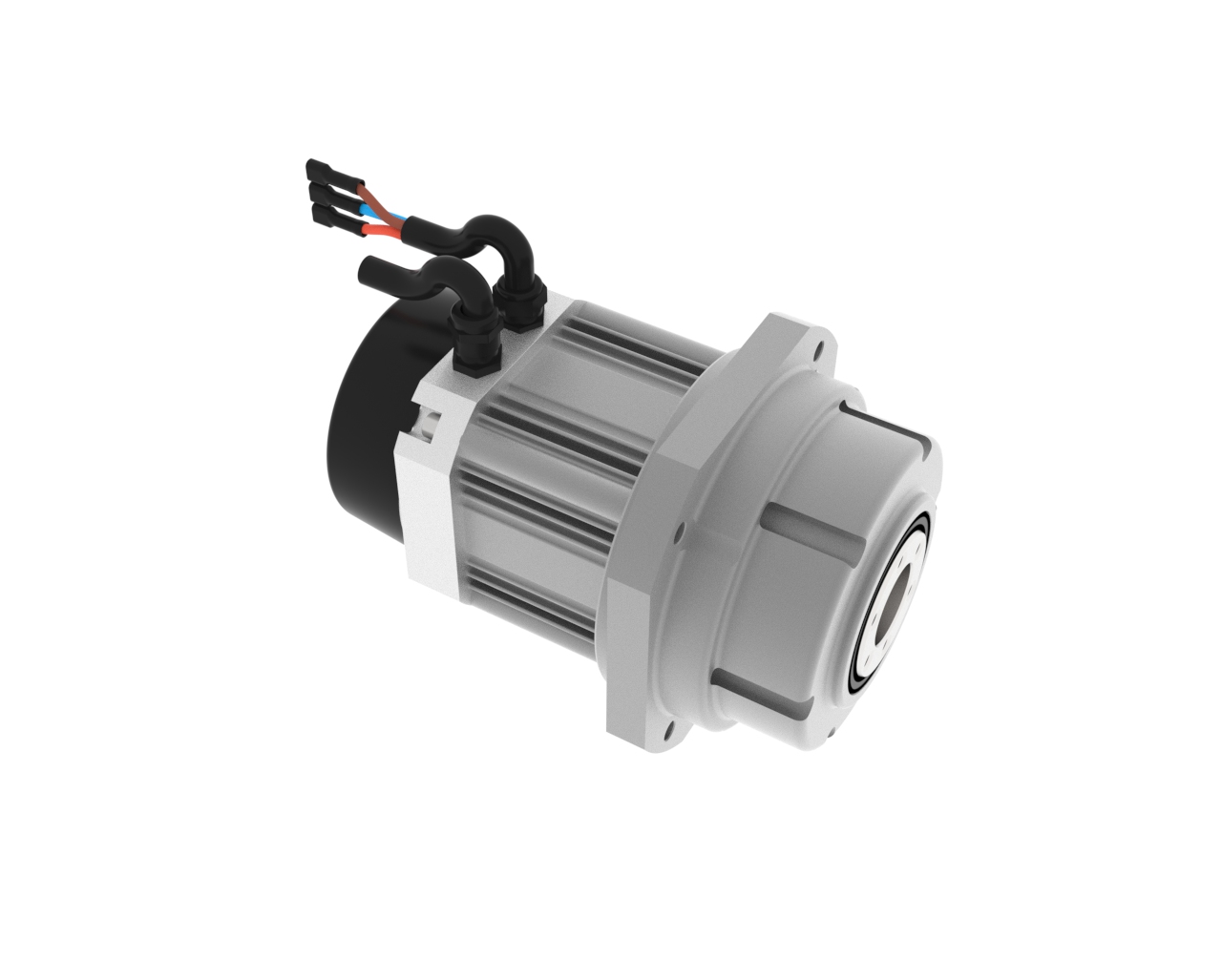

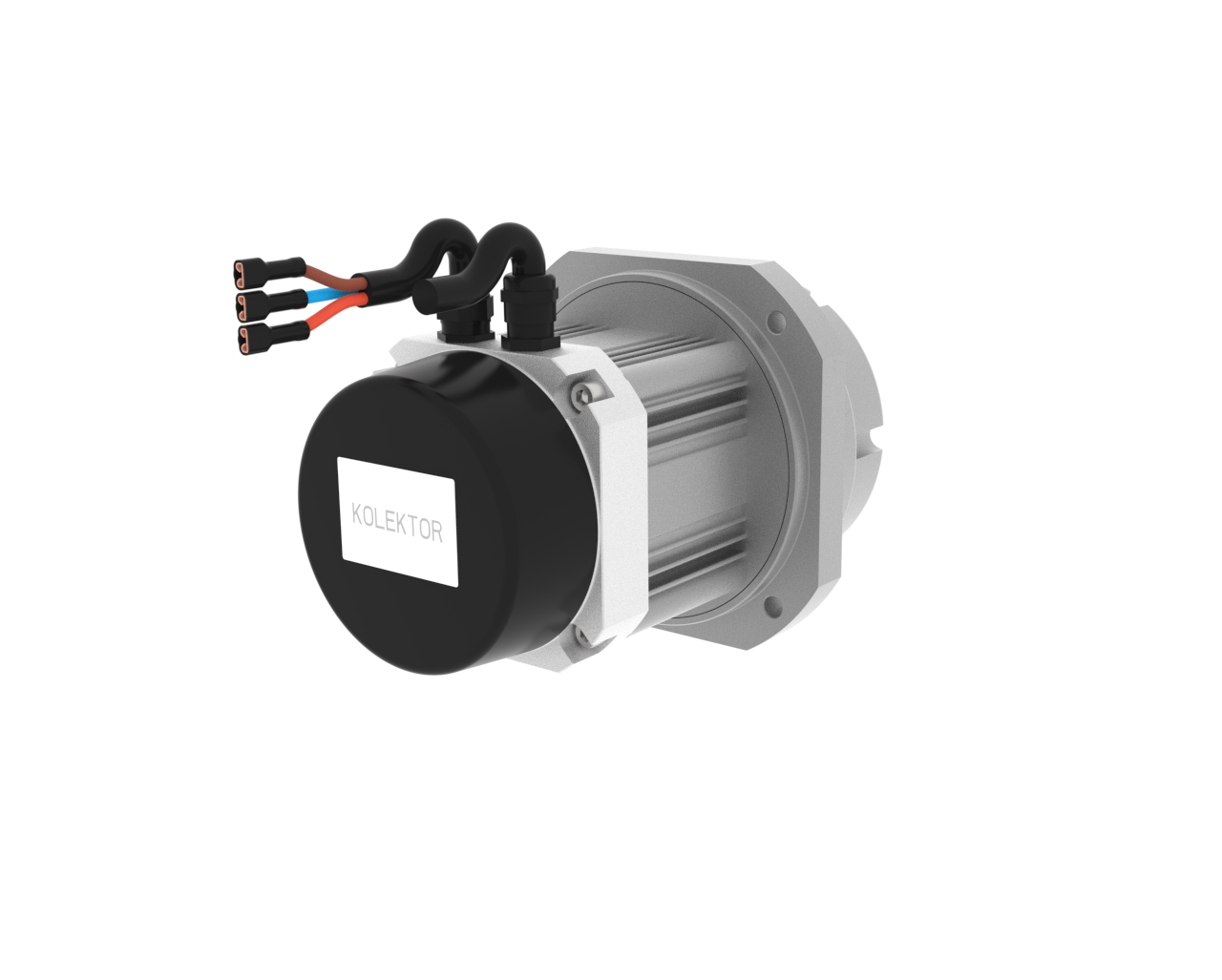

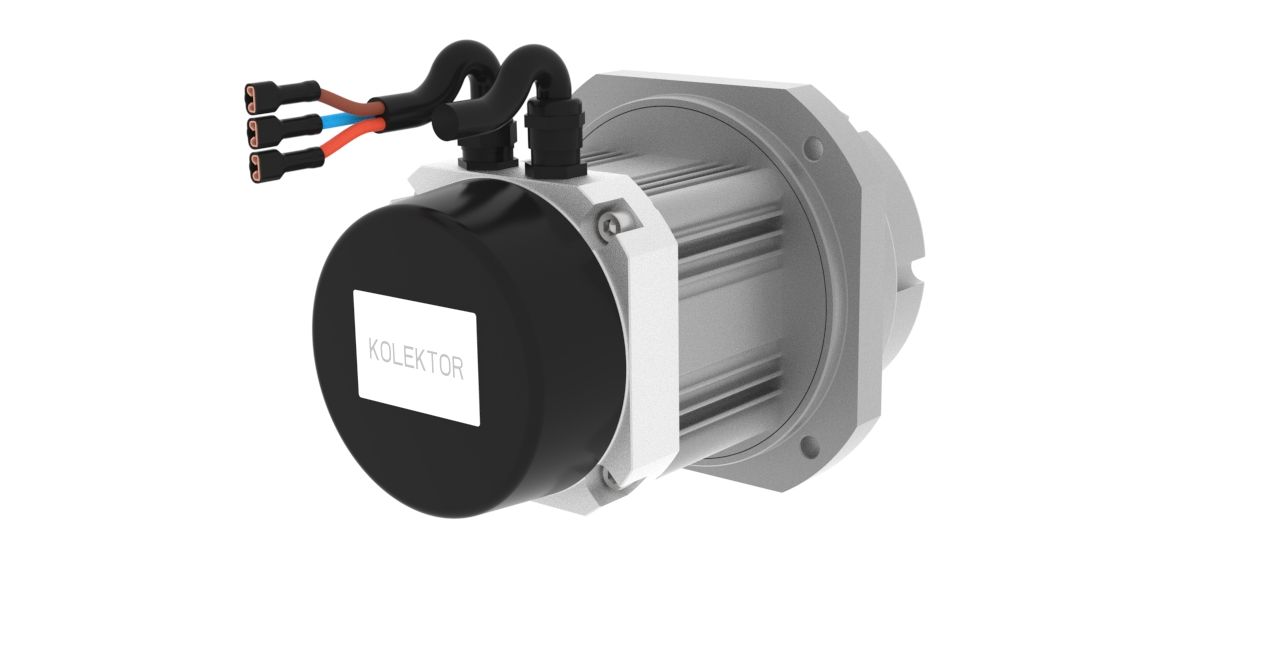

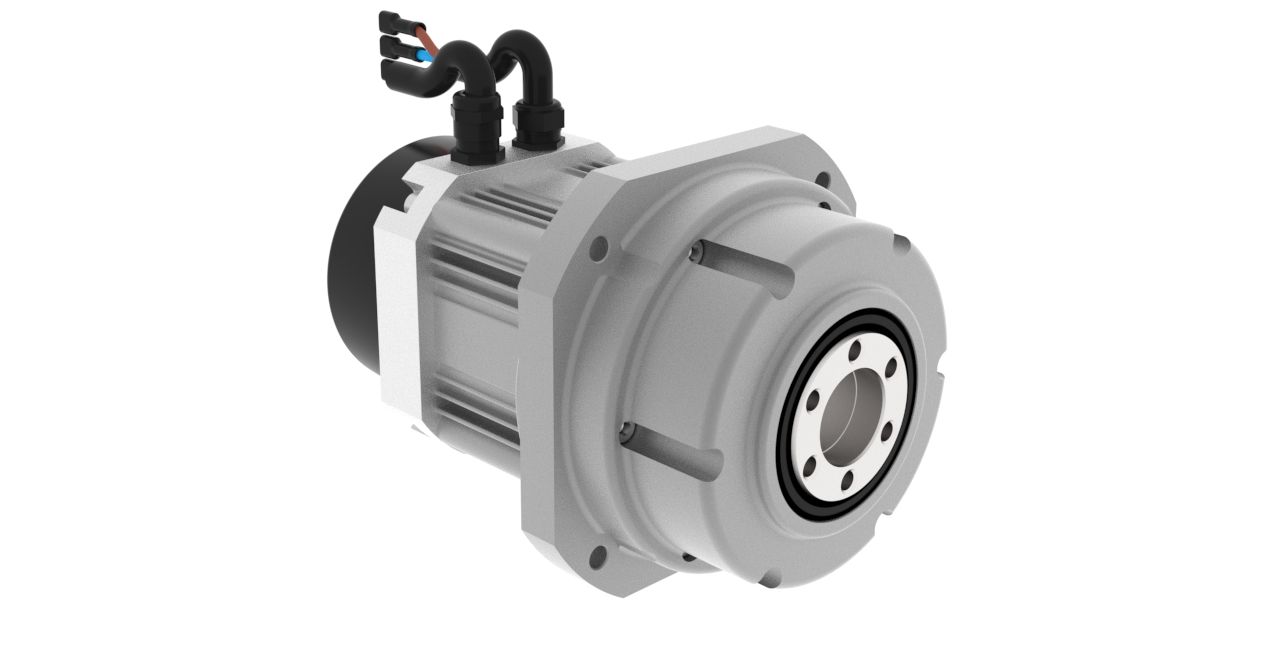

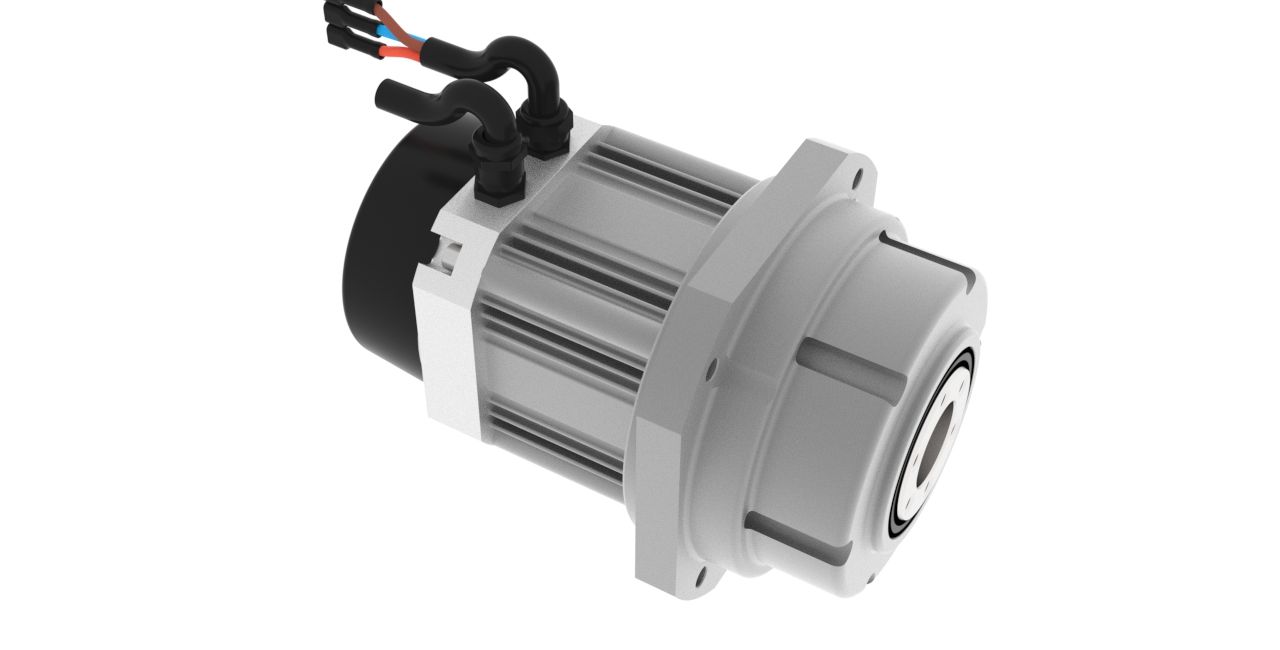

PMBL Motor | BL90/45 (20/115)

Nominal DC voltage [V]

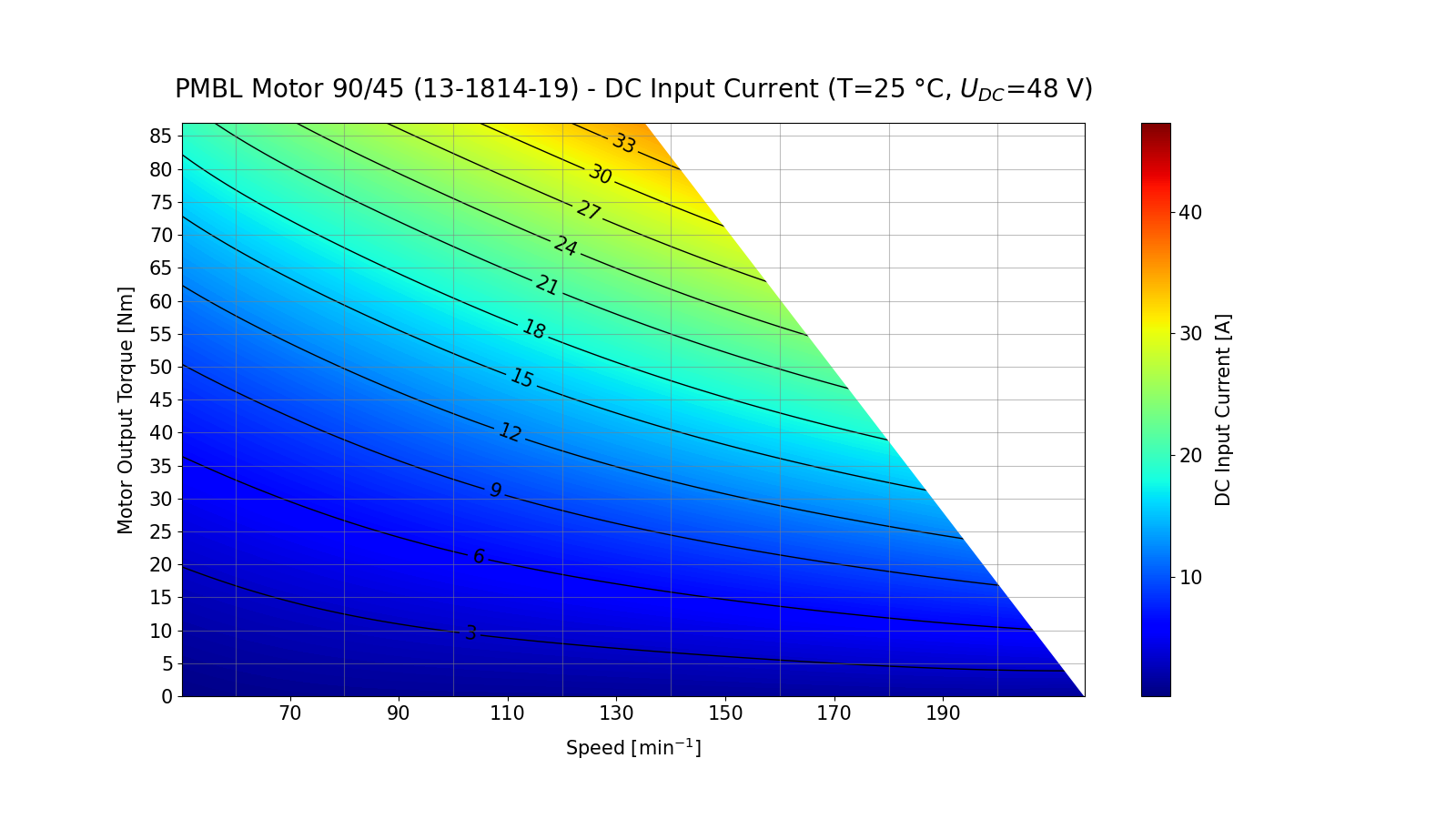

Nominal suppy DC current [A]
No load DC current [A]

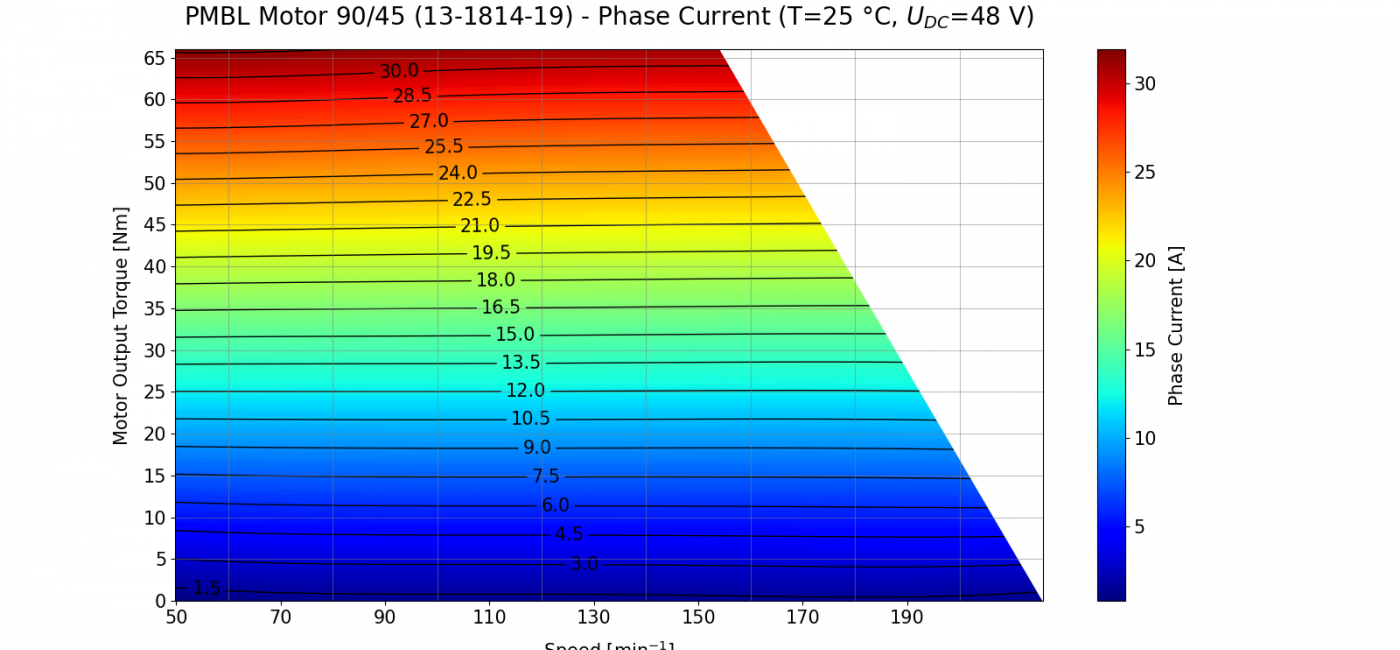

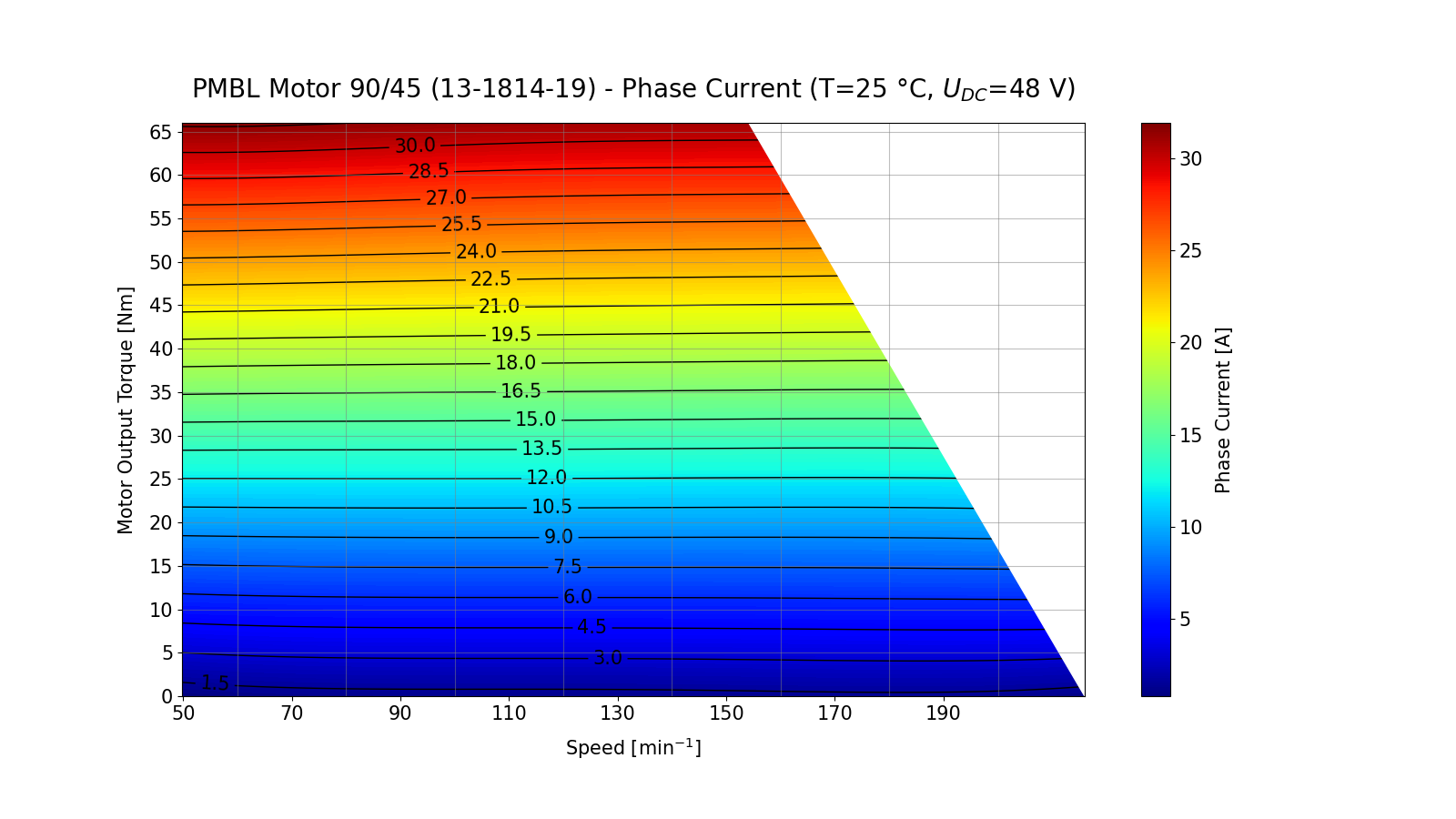

Nominal phase current [Arms]
Peak phase current [Arms]

Resistance phase-to-phase [mOhm]
Inductance phase-to-phase [mH]

48
5
n/a
19
45

42
255

Nominal torque [Nm]
Peak torque [Nm] (S2=min)
Stall torque [Nm]

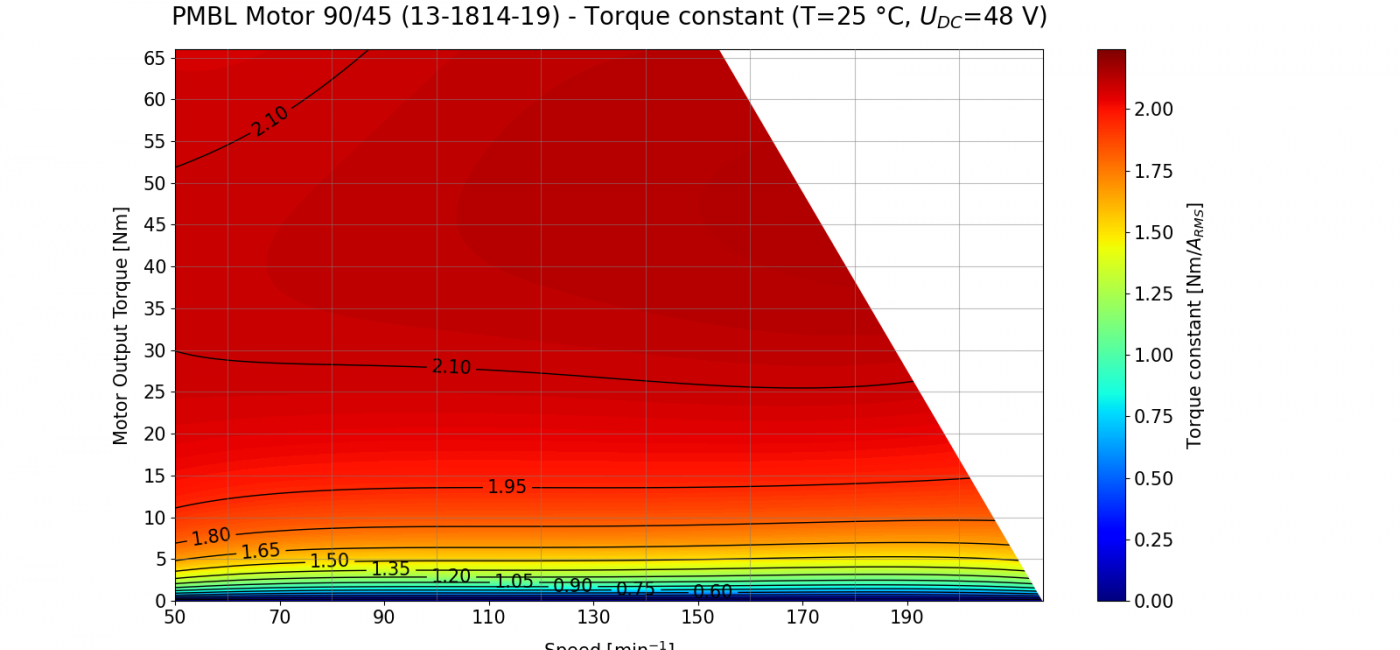

Torque constant [Nm/Arms]
Current contant [A_rms/N]

20
85 @ 120 RPM (10 sec)
n/a
0,4
2,3

No load speed [RPM]
Nominal speed [RPM]
Nominal mechanical power [W]

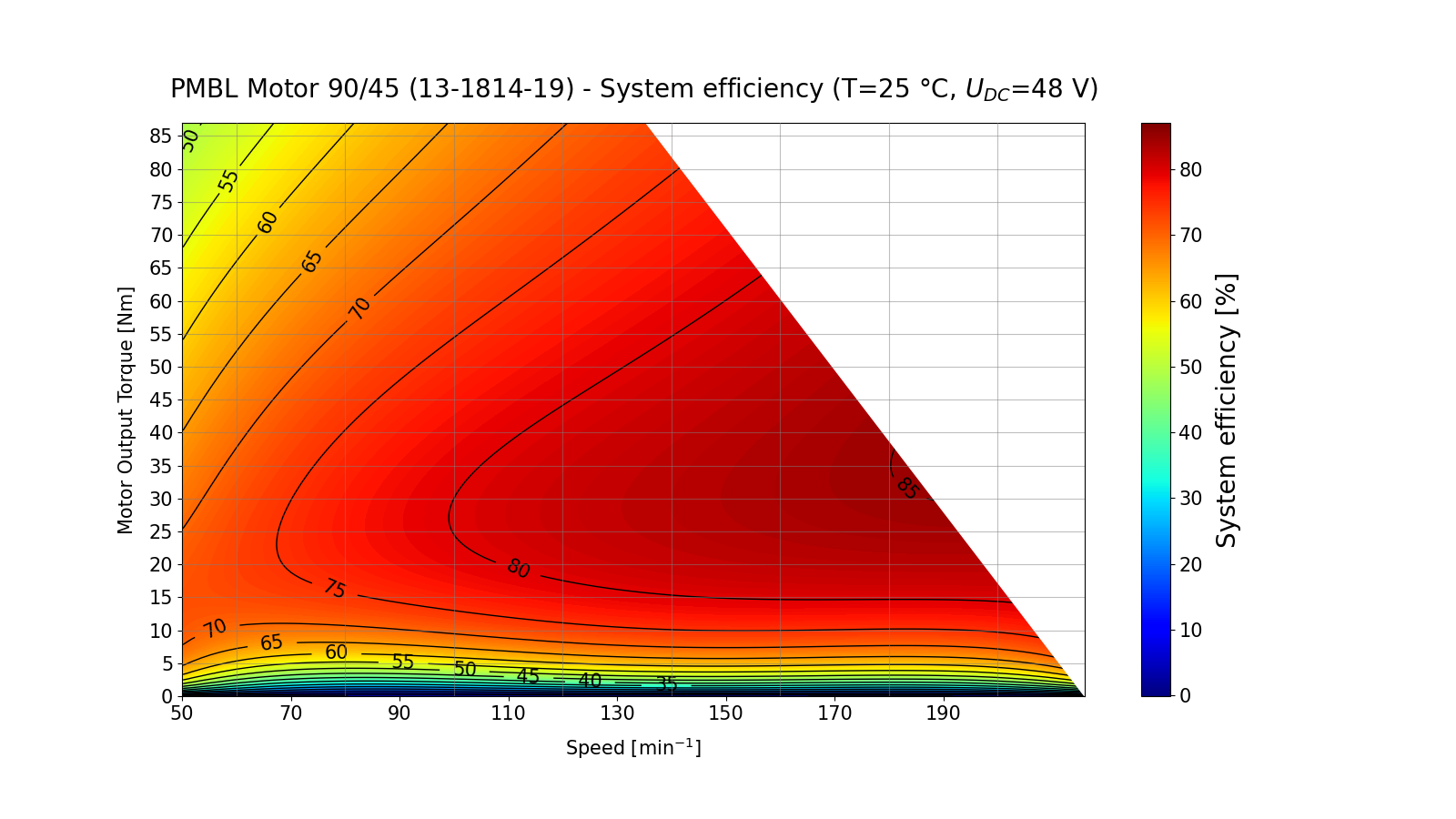

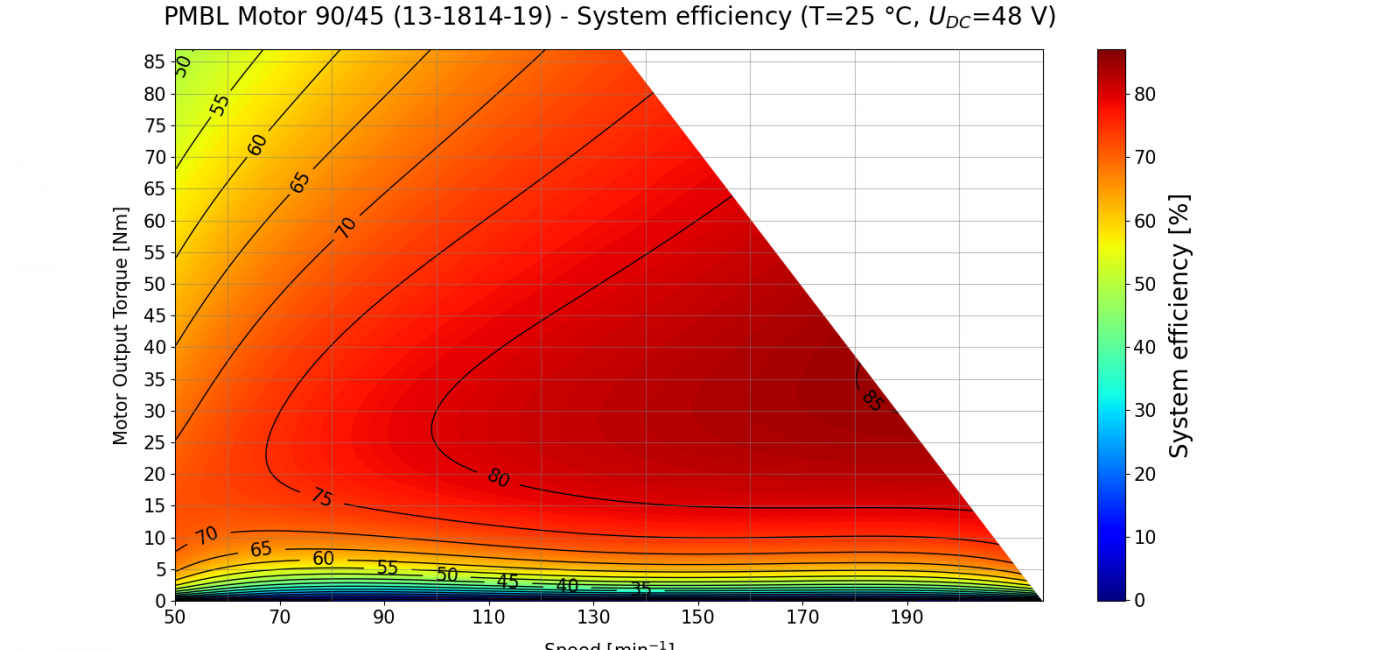

Nominal efficiency [%]
Peak mechanical power [W]
peak torque efficiency [%]

n/a
115
240
79 %
1050 W
67 %

Communication Communication protocol

n/a

Other notes
