Permanent Magnet Brushless Motors - BL145

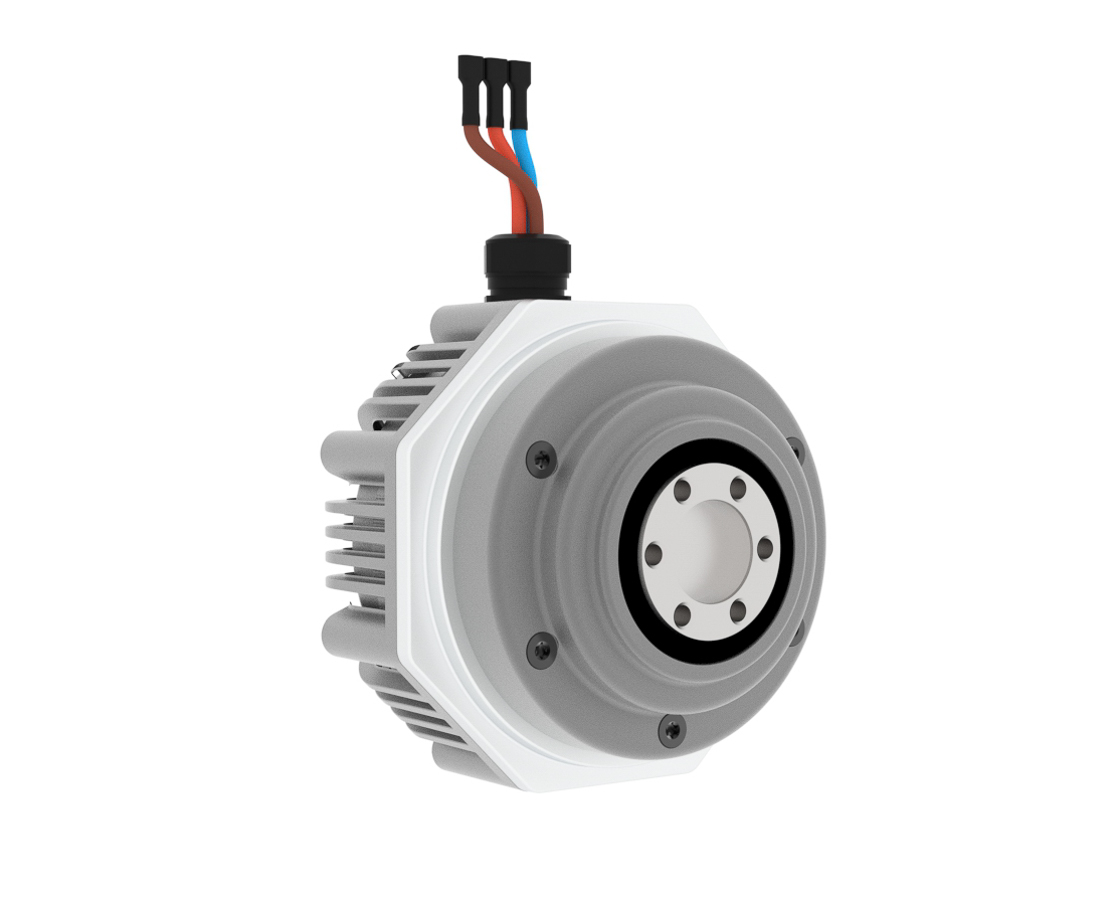

BL145/25 (35/100) |
|
|
|
|
|
400 W Compact motor |
|
| Input voltage | Nominal speed | Nominal torque | Nominal mechanical power | Efficiency | Nominal phase current | Peak torque | |
48 VDC 100 RPM 35 Nm 360 W 85 % 20 Arms 100 Nm (S2=5 min) |

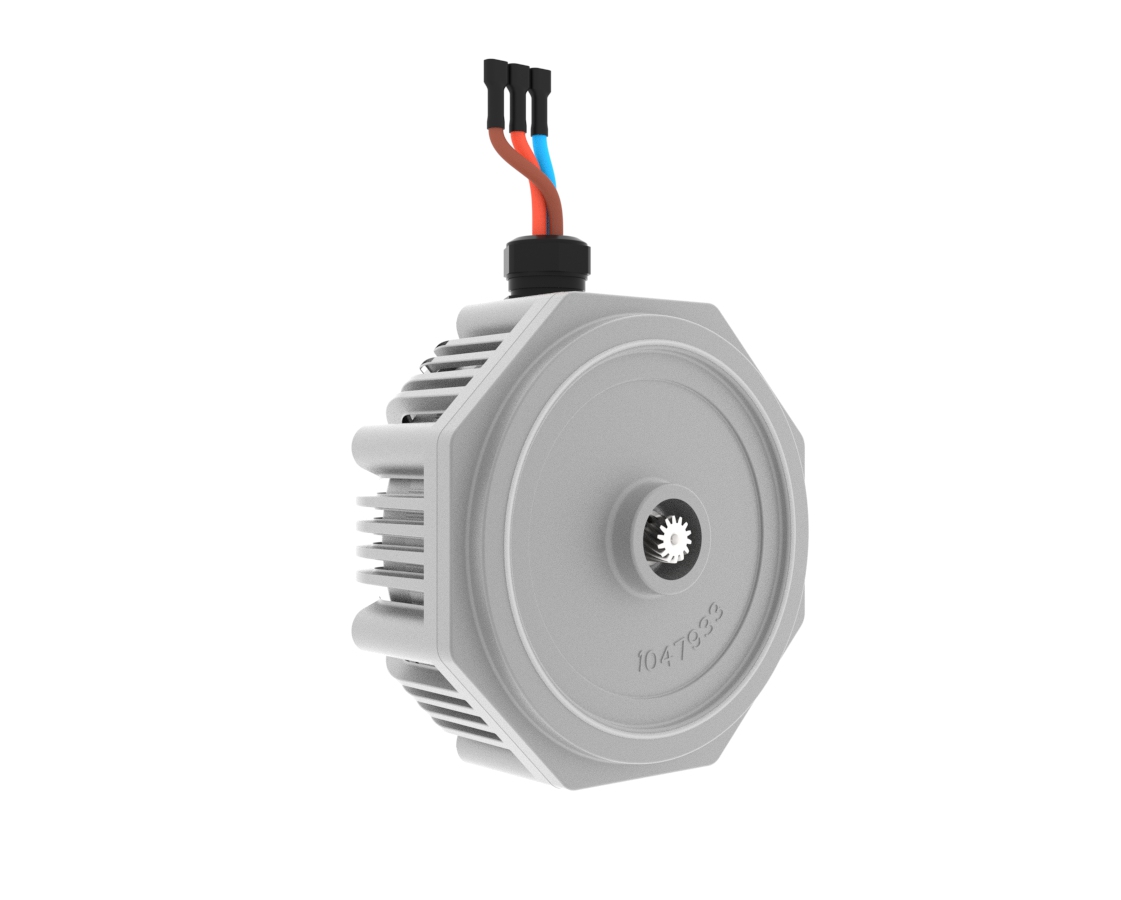

BL145/25 (4,5/900) |
|
|
|
|
|
400 W Compact motor |
|
| Input voltage | Nominal speed | Nominal torque | Nominal mechanical power | Efficiency | Nominal phase current | Peak torque | |
48 VDC 900 RPM 4,5 Nm 420 W 85 % 20 Arms 11 Nm (S2=5 min) |
BL145/50 |
|
|
|
|
|
800 W Compact motor |
|
| Input voltage | Nominal speed | Nominal torque | Nominal mechanical power | Efficiency | Nominal phase current | Peak torque | |
48 VDC n/a RPM n/a RPM 800 W n/a % n/a Arms n/a Nm (S2= min) |
| S1 – continuous duty | S2 – short time | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor Group | Product ID | Ordering No | Nominal DC voltage [V] | Gear Box ratio | Nominal phase current [A] | Nominal torque [Nm] | Nominal speed [RPM] | Nominal mechanical power [W] | Peak phase current [A] | Peak torque [Nm] @ RPM | Peak mechanical power [W] | Brake Voltage [V] | Encoder voltage [V] | Encoder type | No load current | No load speed | Stall phase current | Stall phase torque | Weight [kg] | IP protection class | |
| BL145/25 | 45 | 1:8,8 | 20 | 35 | 100 | 360 | 45 | 100 @ 100 (5 min) | 1000 | 24 | 5 | SSI + Incremental ABZ | upcoming | upcoming | upcoming | upcoming | 7,0 | IP54 | |||
| BL145/25 | 48 | n/a | 20 | 4,5 | 900 | 420 | 30 | 11 @ 900 (5min) | 1000 | 24 | 5 | SSI + Incremental ABZ | upcoming | upcoming | upcoming | upcoming | 7,0 | IP54 | |||
| BL145/50 | |||||||||||||||||||||
