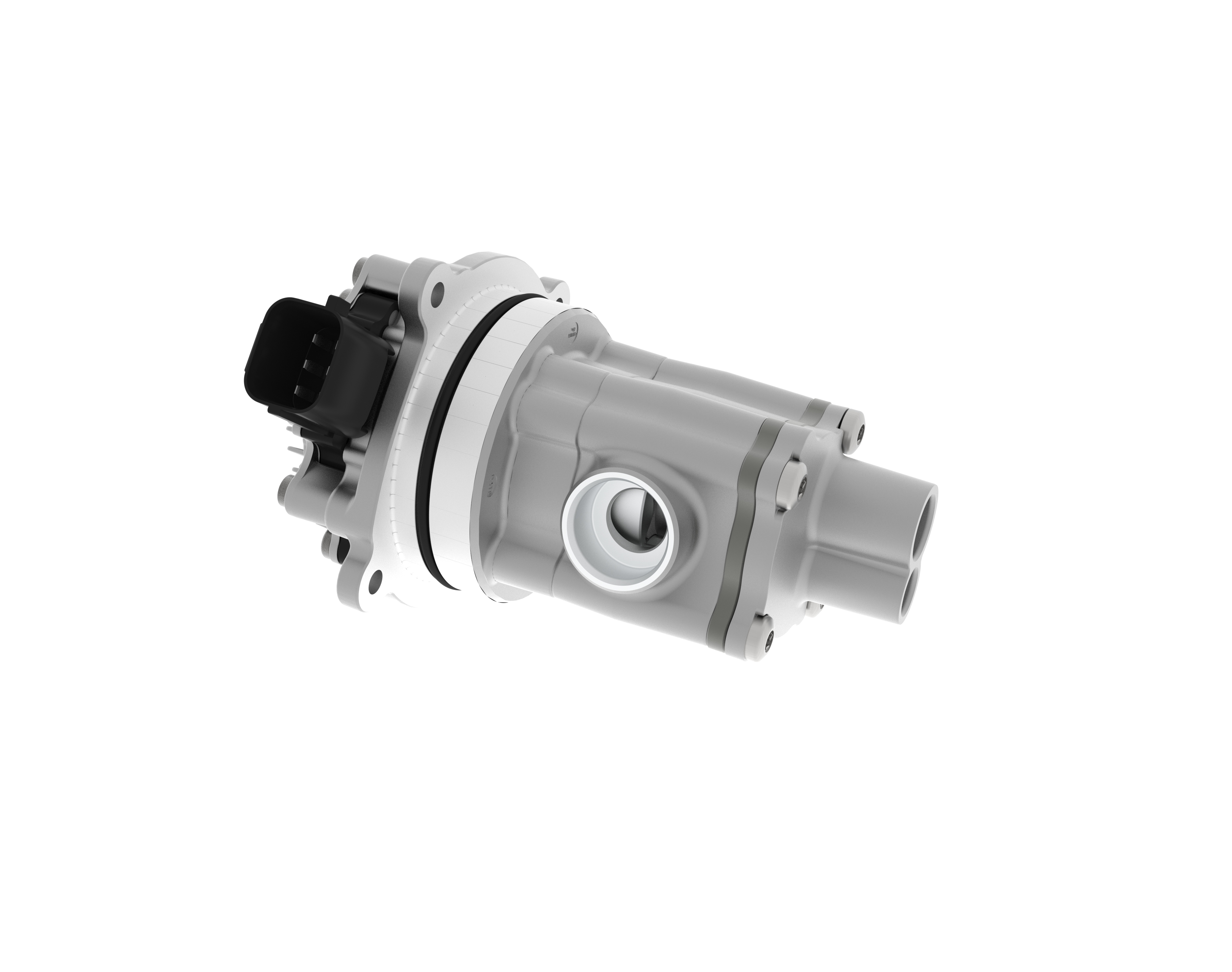

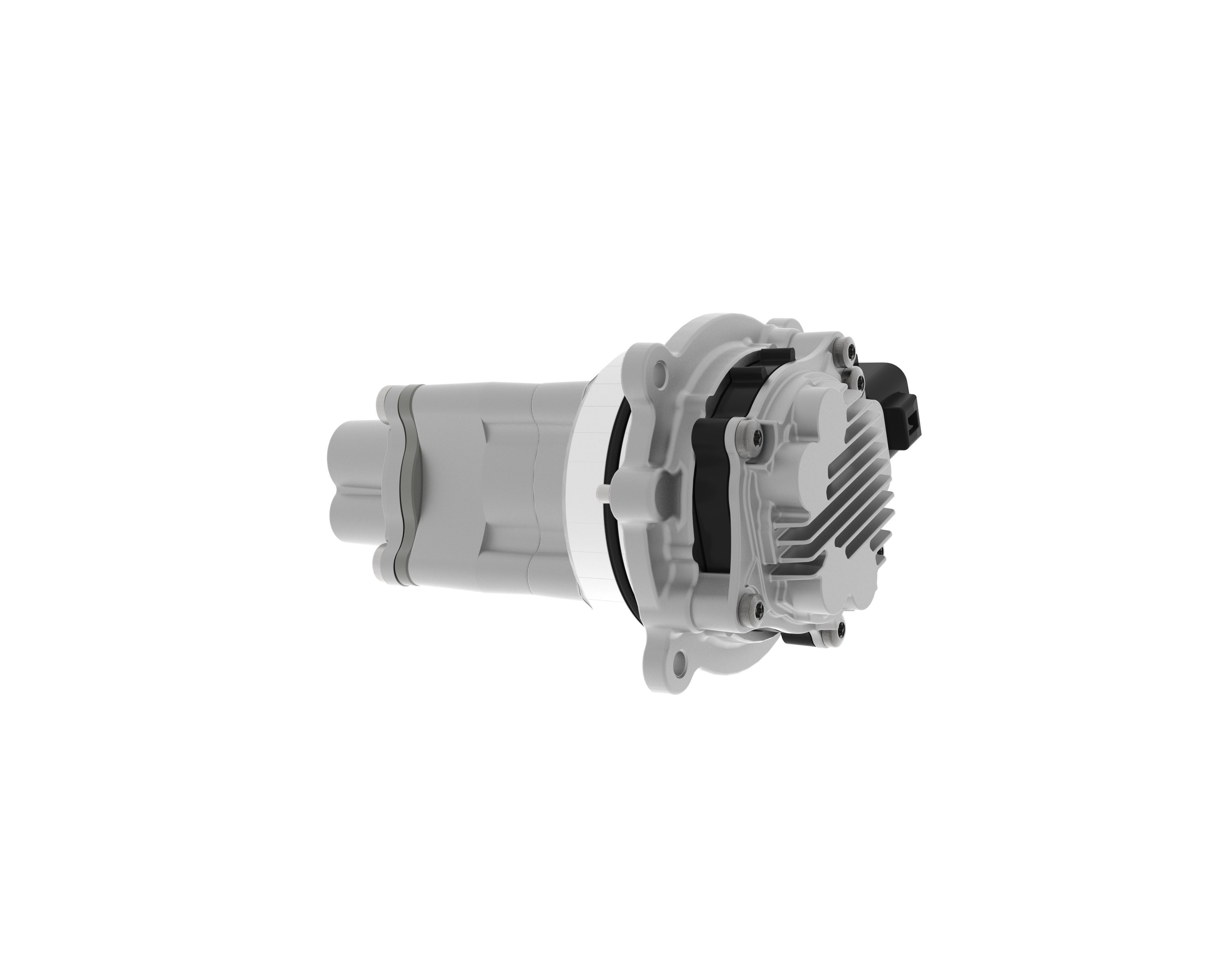

Electric Dual Pump

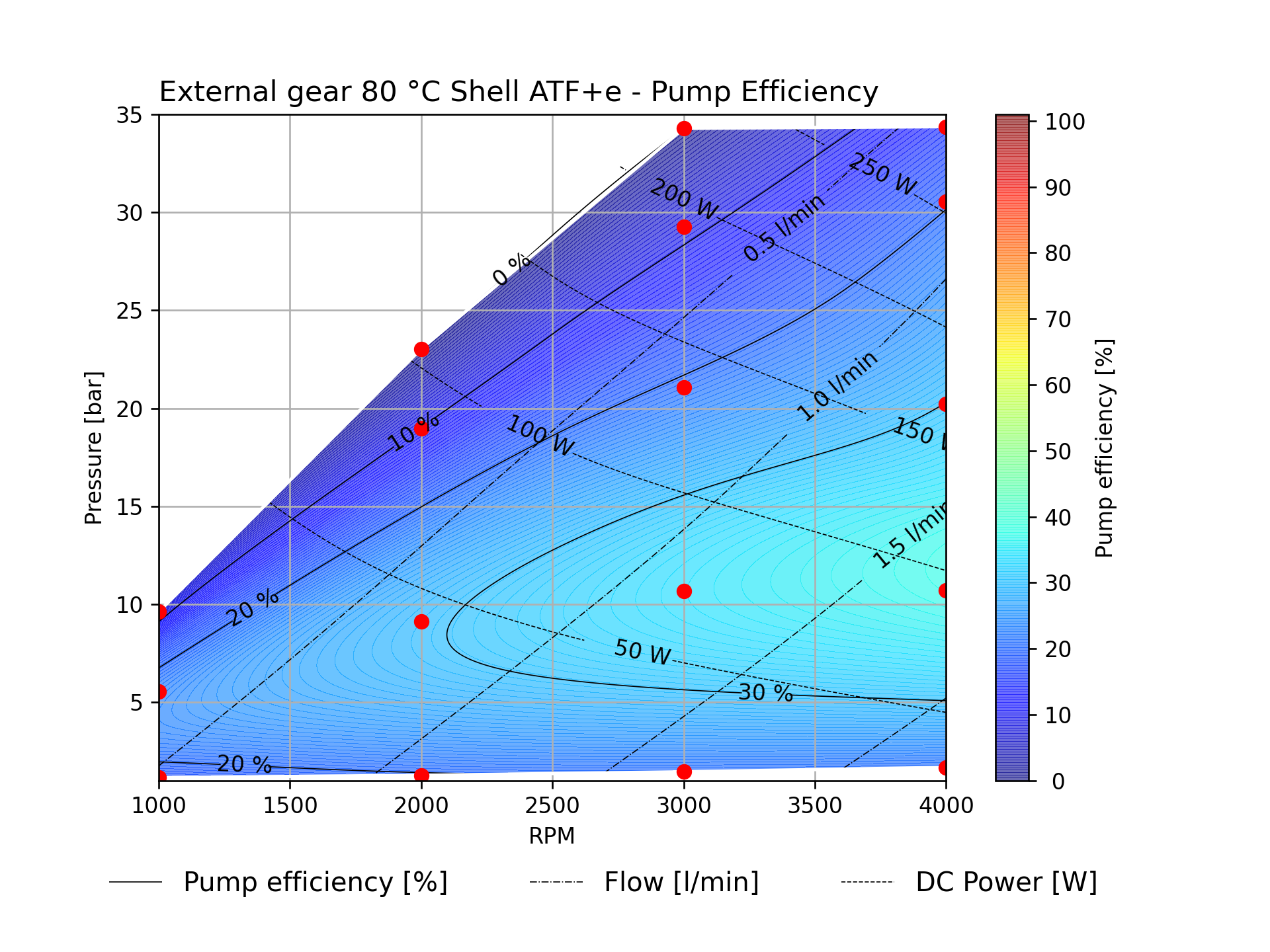

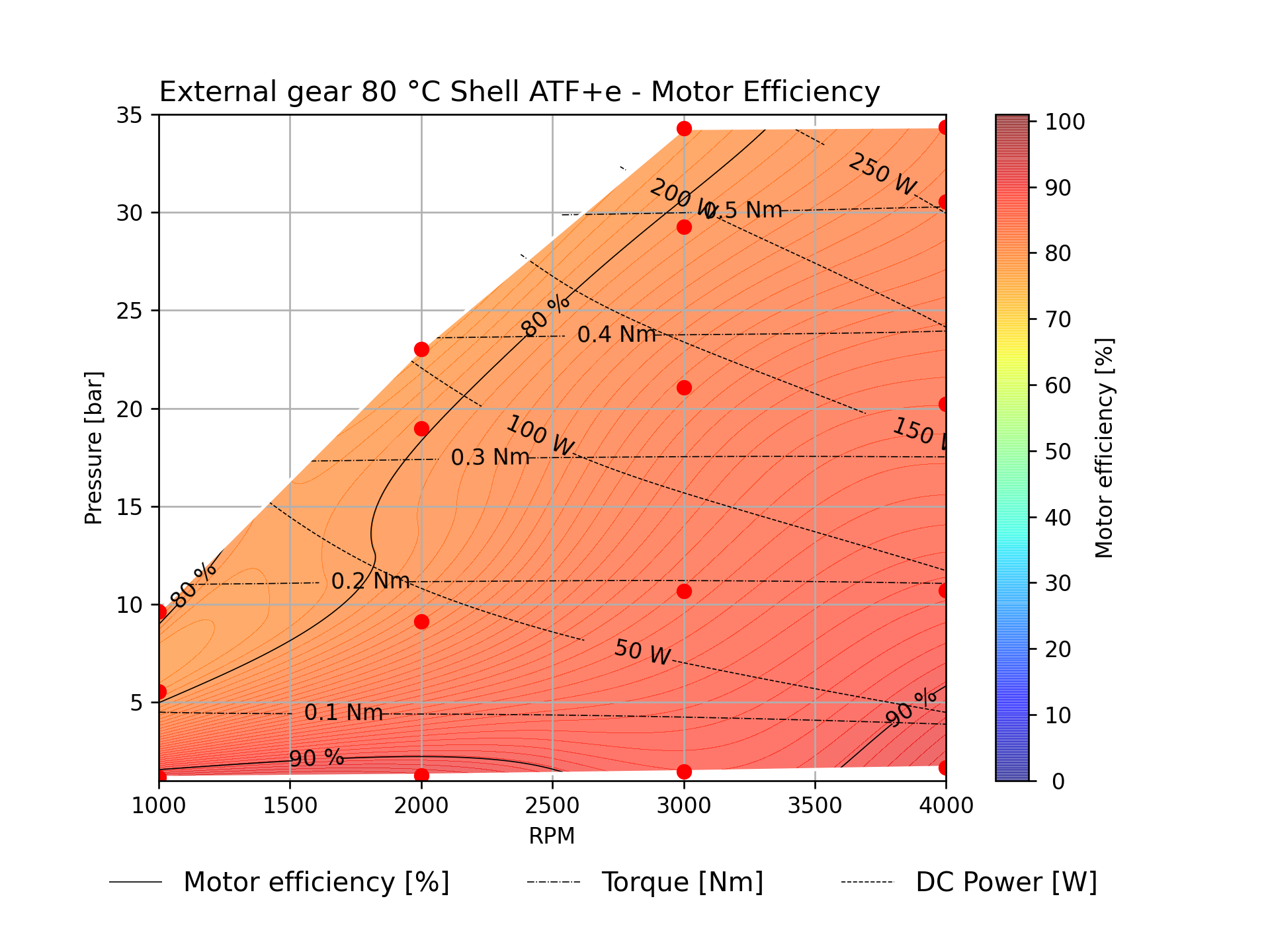

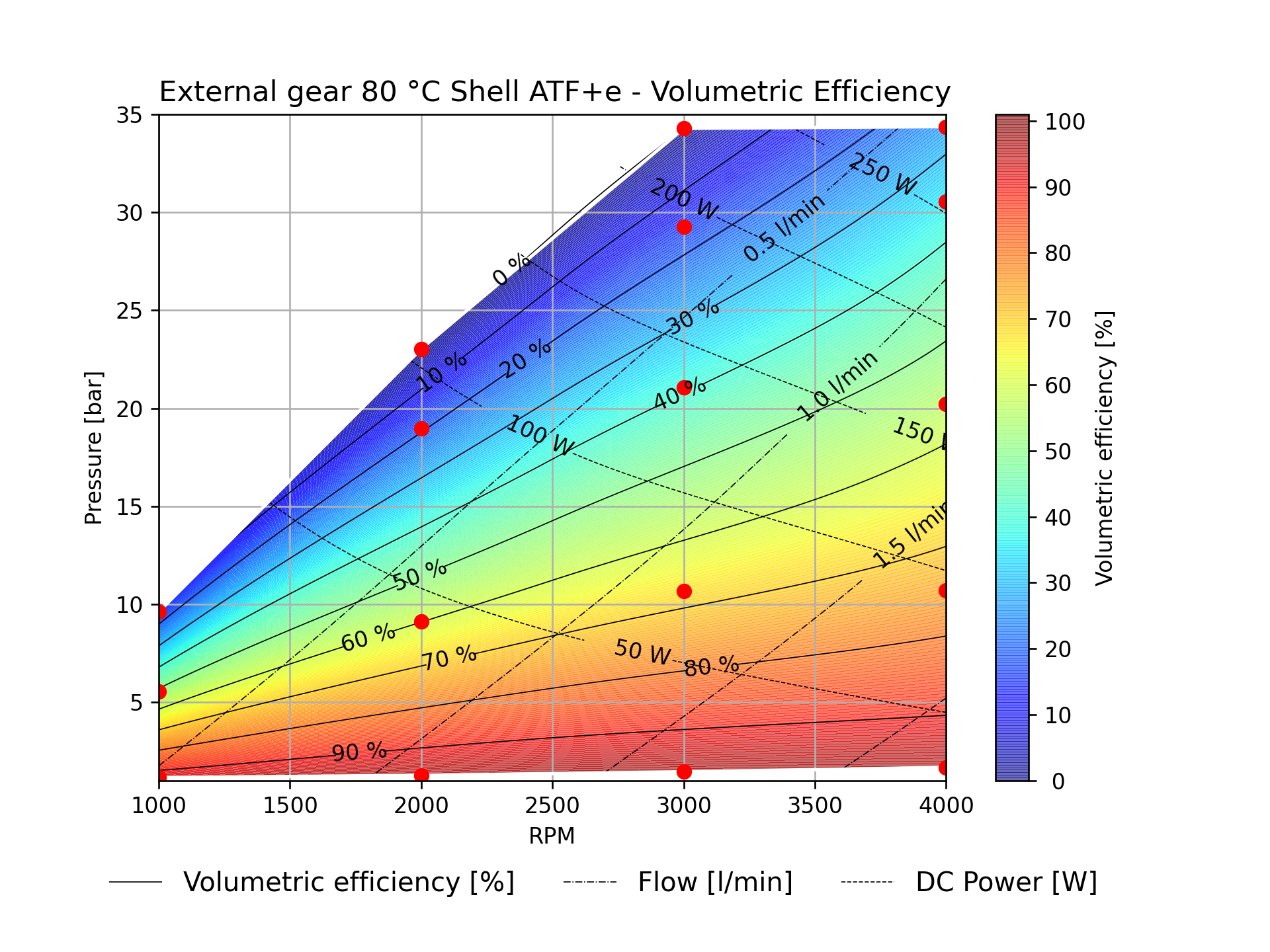

External gear pump unit

Ge-rotor Pump unit

Nominal DC voltage [V]
Nominal suppy DC current [A]
Peak supply DC current [A]

Speed range [RPM]

12
up to 25
up to 40

up to 4000

Max pressure [bar]
Max flow [l/min]

Nominal operating point @ 80°C (cont)
Pressure [bar]
Flow [l/min]

Nominal operating point @ 80°C (int*)
Pressure [bar]
Flow [l/min]

35
2

2,5
1,75


32
1,5

Max pressure [bar]
Max flow [l/min]

Nominal operating point @ 80°C (cont)
Pressure [bar]
Flow [l/min]

4
28


2,5
28

Communication Communication protocol

LIN

on board connector YAZAKI 2.8 series
6 pole No. 7282-5577-10

Other notes

 * int = intermitten
